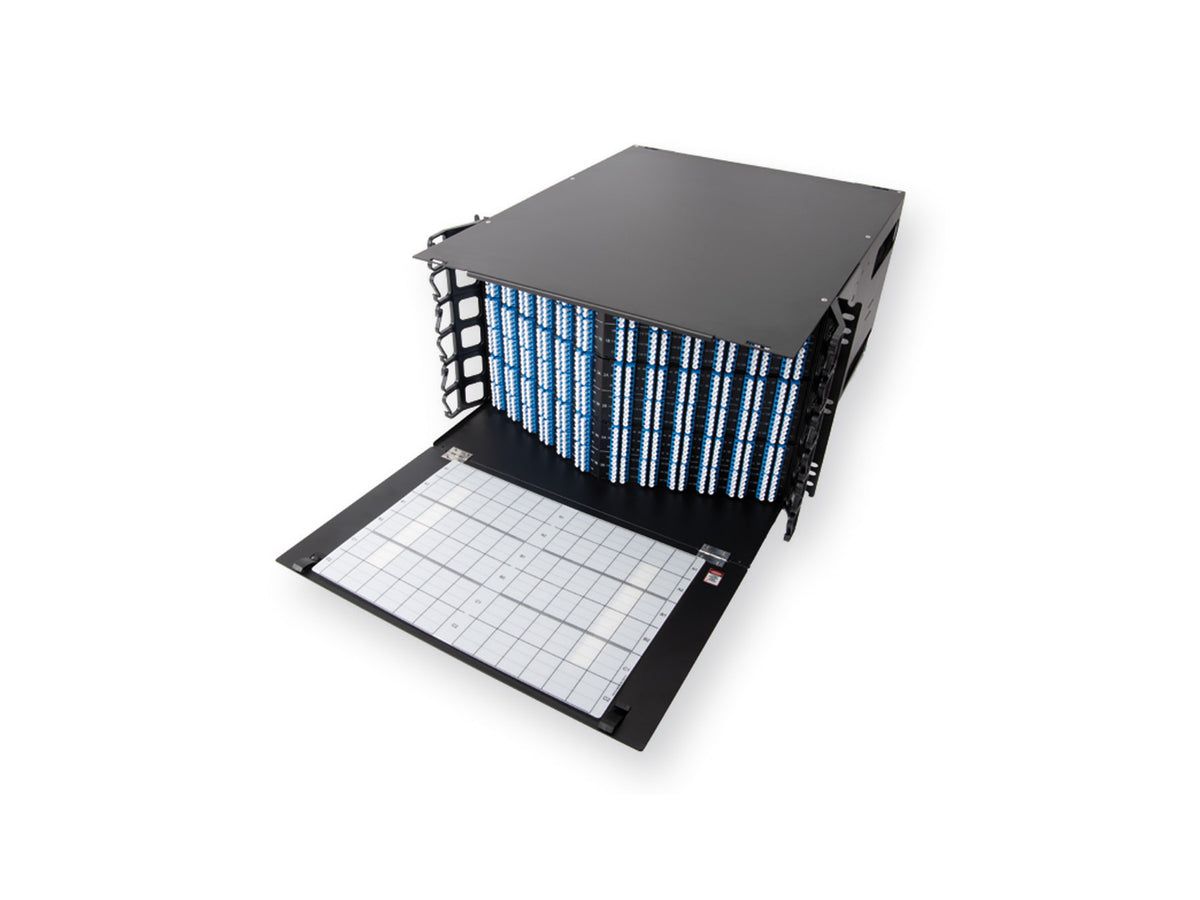

Corning XD-06U-PT | EDGE Housing-XD
Regular price
$15,140.56
Unit price
Brand: Corning
|
SKU:
10089300
Regular price
$15,140.56
Unit price
Description
Description

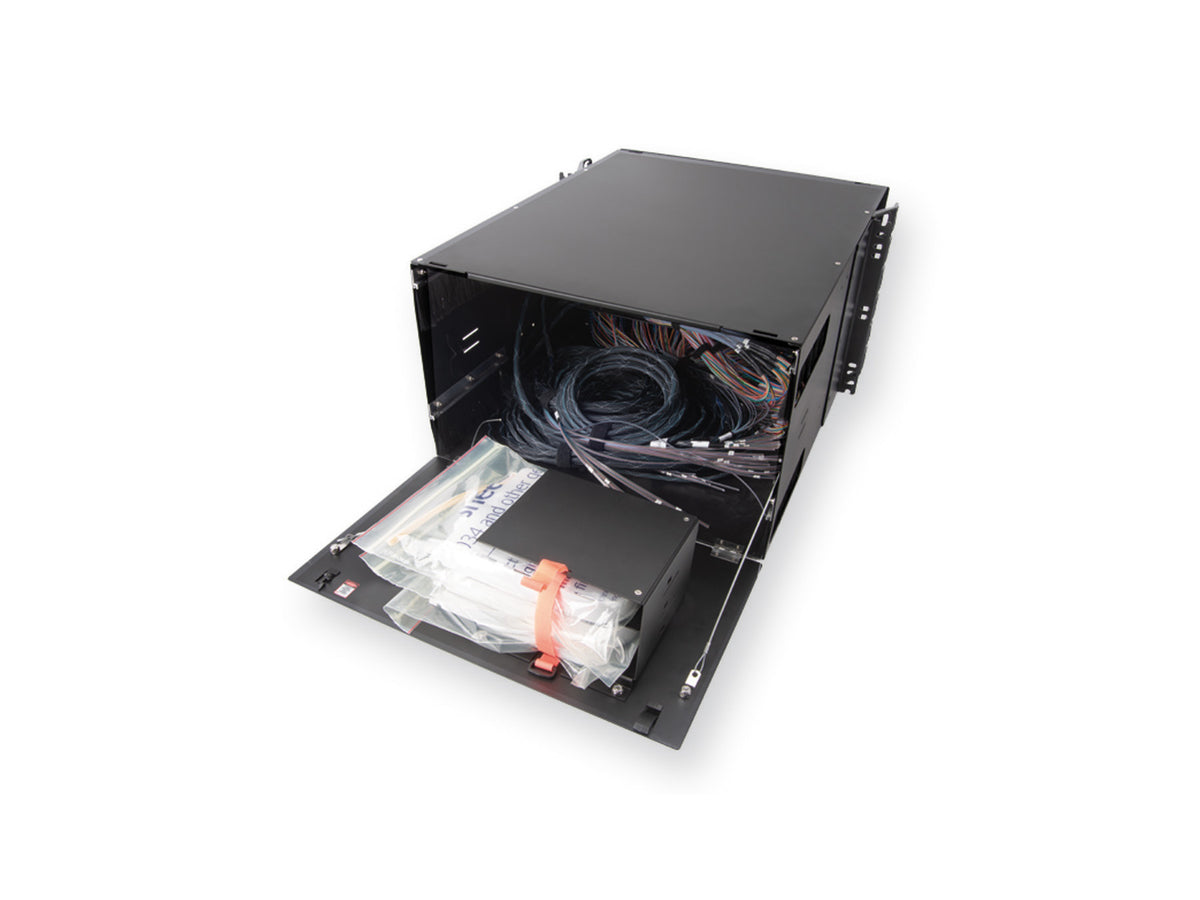

Corning XD-06U-PT | EDGE Housing-XD 06U Pigtailed Housing
Specifications
Specifications
Corning - XD-06U-PT - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- Fiber Optic Hardware
- Housings
Corning - XD-06U-PT - Specifications
| General Specifications | - |
|---|---|
| Product Number | XD-06U-PT |
| Product Type | Fiber Optic Hardware |
| Environment | Indoor |
| Access Type | front and rear access fixed |
| Lockable | No |
| Mounting Type | Rack 19-in |
| Splice option | Yes |
| Application | Data Center |
| Brand | EDGE |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Input Fiber Count | 864 |
| Maximum Tray Count (SC) | 3 |
| Housing Material | Powder-coated metal and polycarbonate tray |
| Mass Fusion Splice Capacity | 72 |
| Maximum Fiber Capacity | 864 |
| Maximum cable number in basic unit with accessories | 1 |
| Number of Cable Entries | 4 |
| Number of Doors | 2 |
| Cable entry type | Side brush entry |
| Number of pigtails | 864 |
| Pigtail Length | 5 m (16.4 ft) |
| Adapter Color Front | Blue |
| Cable Entry Direction | Rear |
| Polish | UPC |
| Housing Color | Black |
| Color | Black |
| Pigtail Type | Ribbon |
| Number of Adapters | 432 |
| Number of Ports | 432 |
| Design - Adapter | - |
| Housing Color | Blue |
| Housing Material | Composite |
| Adapter Type | LC Duplex |
| Connector Specs | - |
| Housing Color | Blue |
| Housing Material | Composite |
| Ferrule Material | Zirconia |
| Specifications - Connector B | - |
| Polish | UPC |
| Dimensions | - |
| Height | 264 mm (10.39 in) |
| Width | 486.61 mm (19.16 in) |
| Depth | 591 mm (23.27 in) |
| Shipping Dimensions | - |
| Height | 267 mm (10.51 in) |
| Depth | 660 mm (25.98 in) |
| Ordering Information | - |
| Weight | 14.2 kg |
| Package Contents | EDGE 6U XD Housing, 6 - 144F LC Duplex Ribbon Pigtail Assemblies, 3- 288F Splice Trays |
| Shipping Weight | 15.4 kg |
| Width | 487 mm (19.17 in) |
| Language installation instruction | English |
| Units per Delivery | 1/1" |
| Connector Type | LC |
| Loaded | LOADED |
| Type | RACK MOUNT |
| UNSPSC Code | 43223337 |
