Brand: Hoffman
|
SKU:
651085

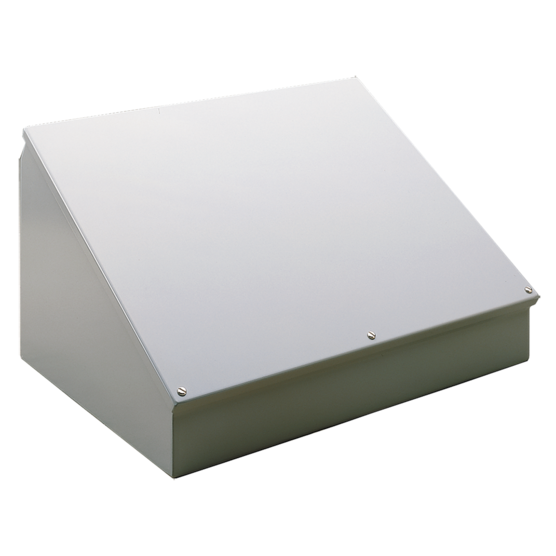

Hoffman C12C24SS | Stainless Steel Consolet, Type 12, 12.00x24.00x9.09, SS Type 304
Regular price
$2,374.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman C12C24SS | Stainless Steel Consolet, Type 12, 12.00x24.00x9...
Regular price
$2,374.32
Unit price
Description
Description
Consolets are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.
Main Features
- Can be positioned on either of two sides to provide a 30- or 60-degree surface access
- Seams continuously welded and ground smooth
- No holes or knockouts
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Oil-resistant gasket and adhesive
- Continuous hinge
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 12, 13; File Number E61997
- NEMA/EEMAC Type 12
- CSA File Number 42186: Type 12
- IEC 60529, IP65
Related Accessories
- Catalog #: AS050SS
- Catalog #: TE090624011
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 9.09 in / 231 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.98 mm |
| Weight | 23.26 lb |
| BULLETIN NUMBER | C5S |
