Brand: Hoffman | SKU: 651150

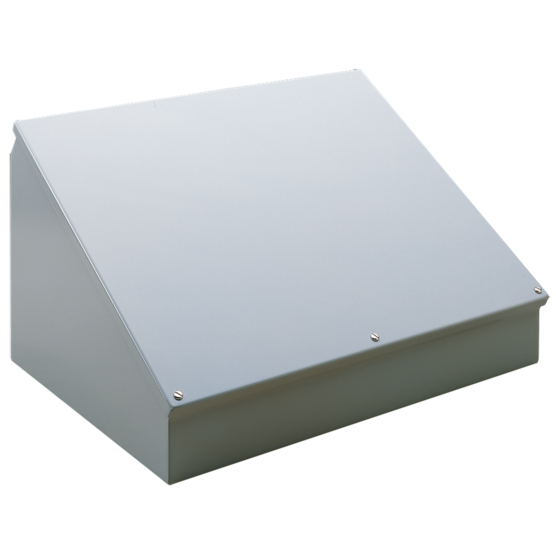

Hoffman C8C8 | Mild Steel Consolet Type 12, 8.00x8.00x7.09, Gray, Steel

$356.01

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Consolets are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.

Main Features

Can be positioned on either of two sides to provide a 30- or 60-degree surface access
Seams continuously welded and ground smooth
No holes or knockouts
Captivated cover screws thread into sealed wells
Bonding provision on cover
Oil-resistant gasket and adhesive
Continuous hinge

Specifications

Industry Standards

UL 508A Listed; Type 12, 13; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
NEMA/EEMAC Type 12, 13
CSA File Number 42186: Type 12
IEC 60529, IP65

Related Accessories

Catalog #: A18SBASE
Catalog #: A24SBASE
Catalog #: A44CCOL
Catalog #: A66CCOL
Catalog #: LEDPUCK
Catalog #: C20C20
Catalog #: C16C24
Catalog #: C16C20

Hoffman On Demand Alternatives

Catalog #: C8C8
Catalog #: C8C16
Catalog #: C8C12
Catalog #: C20C30
Catalog #: C20C24

Specifications

Height	8 in / 203 mm
Width	8 in / 203 mm
Depth	7.09 in / 180 mm
Material	Mild Steel
Color	Gray
Color Code	ANSI 61
Finish	Powder Coated
Thickness	14 ga / 1.9 mm
Weight	7 lb
BULLETIN NUMBER	C5
