Brand: CommScope
|
SKU:
465429

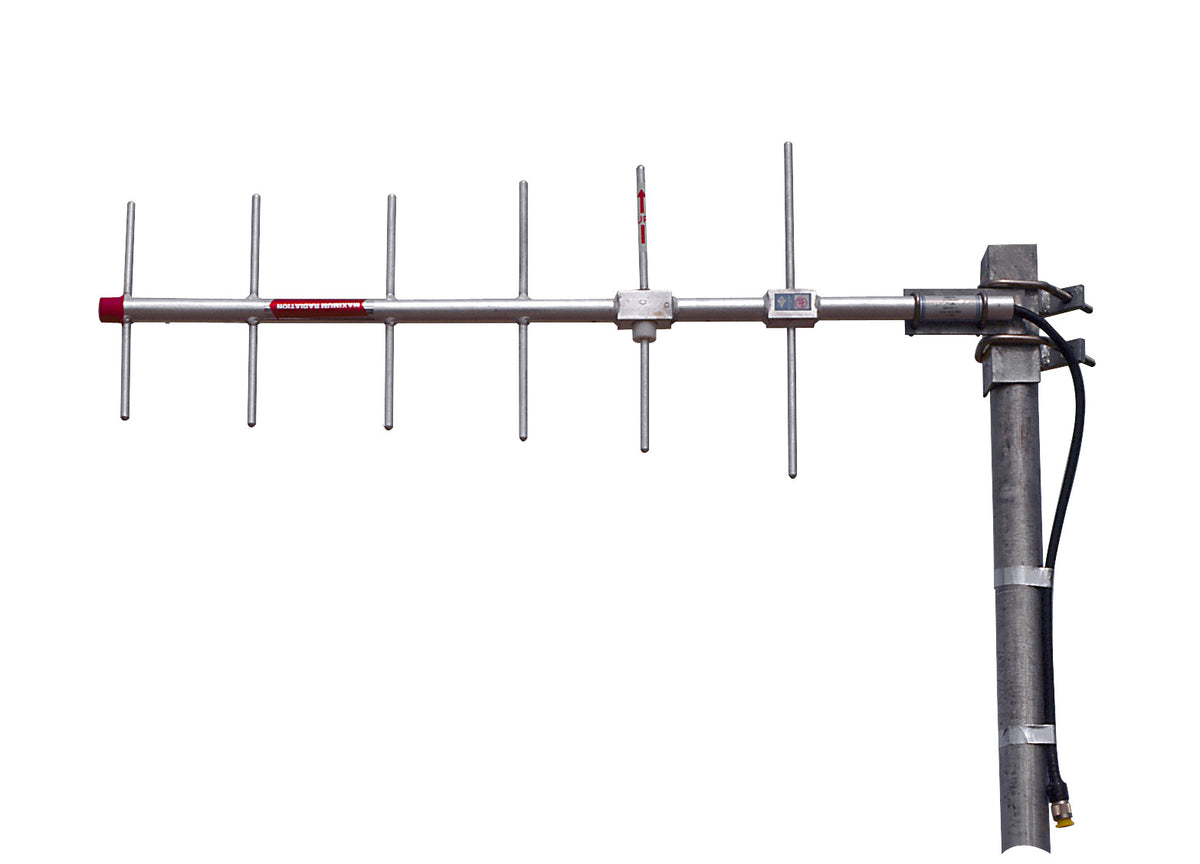

Commscope DB436-C | 1-port sector (yagi) antenna, 450–470 MHz, 60° HPBW, fixed electrical tilt
Regular price
$723.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DB436-C | 1-port sector (yagi) antenna, 450–470 MHz, 60° ...
Regular price
$723.15
Unit price
Description
Description
Commscope DB436-C | 1-port sector (yagi) antenna, 450–470 MHz, 60° HPBW, fixed electrical tilt
Features and Benefits
- Highly directional coverage and good front-to-back ratio
- Rugged, reliable design
- Stacked arrays
Specifications
Specifications
General Specifications
| Antenna Type | Sector |
|---|---|
| Band | Single band |
| Color | Silver |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Male |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 368.3 mm / 14.5 in |
|---|---|
| Depth | 25.4 mm / 1 in |
| Length | 889 mm / 35 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 60 |
| Beamwidth, Vertical, degrees | 44 |
| Front-to-Back Ratio at 180°, dB | 16 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 250 |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 60 |
| Beamwidth, Vertical, degrees | 44 |
| Front-to-Back Ratio at 180°, dB | 16 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 250 |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 18.0 lbf @ 100 mph / 80.1 N @ 100 mph |
|---|---|
| Wind Speed, maximum | 201 km/h / 124.896 mph |
Packaging and Weights
| Included | U-bolts |
|---|---|
| Net Weight, without mounting kit | 3.2 kg / 7.055 lb |
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
