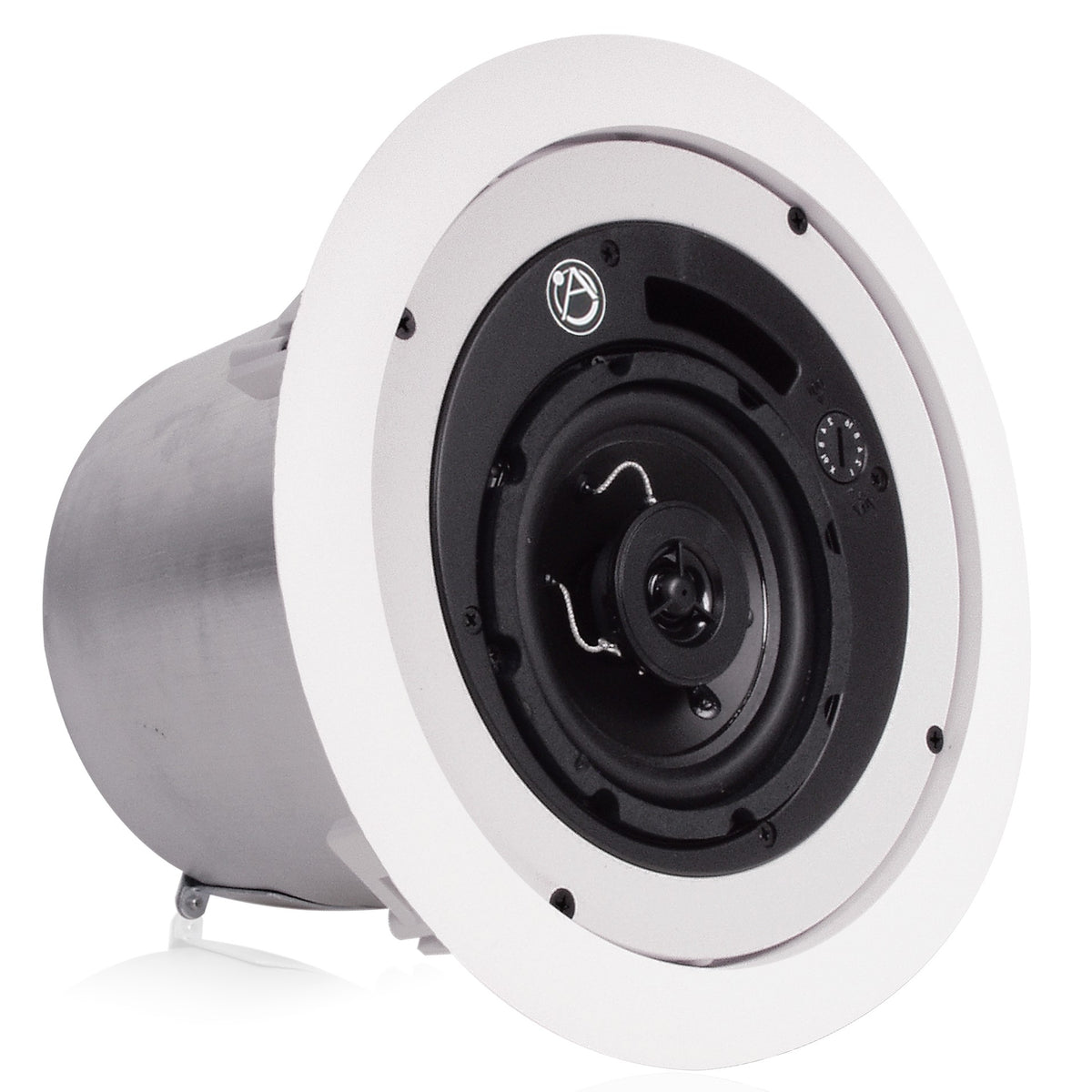

Atlas Sound FAP42T-UL2043 | 4 Inch Coaxial In-Ceiling Speaker with ...
Description
Description
The FAP42T-UL2043 from AtlasIED meets requirements of UL 2043 for speakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial speaker performance with wide dispersion and easy installation.
A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.
The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.
The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
Atlas Sound - FAP42T-UL2043 - Features
- 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
- Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
- Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
- Press-Fit Grille Blends Perfectly into Contemporary Architecture
Specifications
Specifications
Atlas Sound - FAP42T-UL2043 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- In-Ceiling
- Strategy II Series
Atlas Sound - FAP42T-UL2043 - Related Products
- FAP42-TR - New Construction Ring for FAP42T Speaker
Atlas Sound - FAP42T-UL2043 - Specifications
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 88dB Average |
| Power Taps | 1, 2, 4, 8, 16 Watts & 8? |
| Dispersion | 130° |
| Depth | 8 7/8" (22.5425 cm) |
| Shipping Weight | 12.00 lbs (5.44 kgs) |
| Certified to Safety Listing | UL 1480 & UL 2043 |
| UNSPSC Code | 52161600 |
