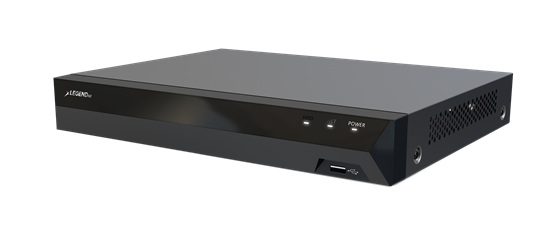

Inaxsys Security Systems LGNX814KUVR | 8CH 4K UNIVERSAL DVR NO HDD
Inaxsys Security Systems - LGNX814KUVR - Features
- This UVR device supports HDCVI, AHD, TVI, and IP video inputs, offering up to 16 channels of IP camera input with 4K resolution. It features line crossing and intrusion detection on up to 8 channels, audio over coaxial for all channels, and double-stream recording, with 4/1 audio and alarm inputs/outputs and a 160Mbps bandwidth.
- Supports HDCVI/AHD/TVI/IP video inputs
- Maximum 8 channels Line crossing & Intrusion Detection
- Audio In/Out: 4/1, Alarm In/Out: 4/1
- Bandwidth : 160Mbps
- All channels Audio over coaxial
- Maximum 16 channels IP Camera input, up to 4K
- Double Stream Recording
- Ordering Information
- Storage Capacity
- LGNX814UVR2T
- 2 TB
- LGNX814UVR4T
- 4 TB
- LGNX814UVR6T
- 6 TB
- LGNX814UVR8T
- 8 TB
- LGNX814UVR10T
- 10 TB
Specifications
Specifications
Inaxsys Security Systems - LGNX814KUVR - Product Categories
- Security
- Video Surveillance
- Video Recorders
Inaxsys Security Systems - LGNX814KUVR - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNX814KUVR |
| Item Description | 8CH 4K UNIVERSAL DVR NO HDD |
| Audio | No |
| Type | Dvr |
| UNSPSC Code | 46171621 |
| UPC | 685225309079 |
| Analog Video Input | 8-Channels (1.0Vp-p, 75 ?) |
| HDTVI Input | 8MP / 5MP / 4MP / 1080P / 720P |
| CVI Input | 8MP / 4MP / 1080P / 720P |
| AHD Input | 8MP / 5MP / 4MP / 1080P / 720P |
| CVBS Input | Supported |
| IP Video Input | Up to 16-Channels, Resolution up to 8MP |
| Audio Input | 4-Channels, RCA (2.0Vp-p, 1K?) |
| Two-Way Audio | 1-Channel, multiplex with Audio Input (RCA) |
| HDMI | 1-Channel, Resolution: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA | 1-Channel, Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| CVBS | 1-Channel, BNC (1.0Vp-p,75?), Resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 1-Channel, RCA (Linear, 1k?) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Encoding Resolution | 8MP / 5MP / 4MP / 1080P / 1080P Lite / 720P / 960H / D1 |
| Resolution Main stream | 8MP @ 7fps, 8MP-N @ 15fps, 5MP @ 12fps, 4MP @ 15fps, 1080P/720P/960H/D1 @ 25fps (P) /30fps (N) |
| Frame Rate | PAL: 1-25fps NTSC : 30fps |
| Video Bit Rate | 11Kbps ~ 6769Kbps |
| Recording Mode | Manual, Schedule, Alarm |
| Audio Bit Rate | 64kbps |
| Playback Number | 4-Channels: 8MP Playback 8-Channels: 8MP-N Playback |
| Playback Mode | Smart Playback: Enhanced playback with advanced search features, such as motion or object detection for faster review |
| Normal Playback | Standard, continuous playback of recorded footage |
| Segmented Playback | Splits recorded footage into time segments for easier navigation |
| Tagged Playback | Allows playback of video segments that have been labeled or tagged for easy access |
| Event Playback | Focuses playback on recorded events like motion detection or alarms |
| Picture Playback | View recorded footage in still image format for detailed inspection |
| Backup Mode | USB Device / Network |
| Smart Detection Analog | Analog 8-Channels: line crossing detection, intrusion detection |
| Smart Detection IP Camera | IP Camera Line crossing detection / Area intrusion detection |
| Smart Playback Analog | Line crossing / Area Intrusion / Motion Detection |
| Smart Playback IP Camera | Line crossing / Area Intrusion / Motion Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Ethernet | 1 RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| SATA | 1 SATA Interface Capacity Up to 8TB for each HDD |
| Serial Interface | 1*Standard RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0 |
| Alarm In | 4-Channels |
| Alarm Out | 1-Channels |
| Power Supply | DC12V, 2A; Power Consumption ?10W (without HDD) |
| Working Environment | 14°F ~ 131°F (-10°C ~ 55°C), Humidity 10% to 90% |
| Weight | 4.6 lb / 2.1Kg |
