Brand: Altronix | SKU: 552890

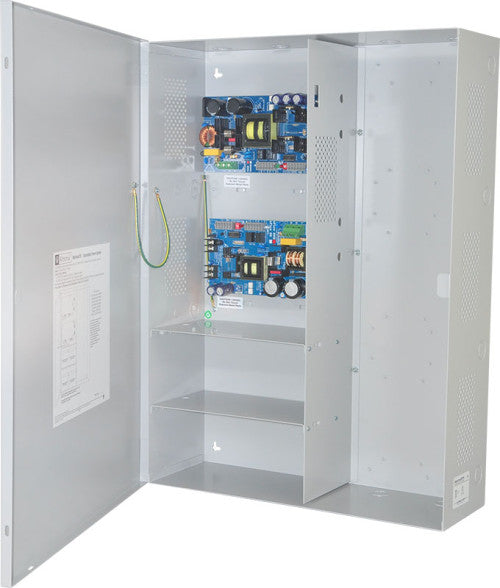

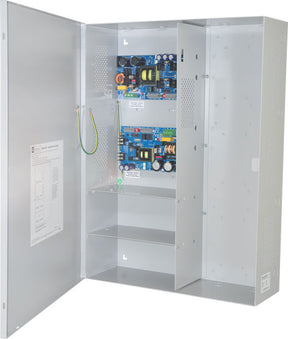

Altronix MAXIMAL37FE | Power Supply/Charger, Expand able, 1 P/S 12/24VDC @ 6A & 1 P/S 24VDC @ 10A, FAI, LinQ2 Ready, 115VAC, BC800 Enclosure

$1,108.88

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Maximal37FE Expandable Power System provides system designers and installers with optimum power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. System includes AC fail, low battery and battery presence monitoring. Enclosure facilitates up to four (4) 12VDC/12AH batteries. All interconnecting equipment must be UL Listed.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to four (4) 12VDC/12AH Batteries.
Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
1/2" and 3/4" combination knockouts.

Input

120VAC 60Hz, 8.0A input.

Output

12VDC and/or 24VDC outputs
Maximum output current Options:
A) 12VDC @ 6A plus 24VDC @ 10A.
B) 24VDC @ 6A plus 24VDC @ 10A.
Non power-limited outputs.
Aux. power-limited output rated @ 1A (unswitched).
Over Voltage Protection.

Fuse Ratings

Power Supply input fuse rated @ 5A/250V.

Fire Alarm Disconnect

Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail & presence supervision (form "C" contacts).
Low power shutdown. Prevents deep battery discharge.

Weights (approximate)

Product Weight	32.3 Lbs. (14.66 kg).
Shipping Weight	39.45 Lbs. (17.9 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment	https://iq.ulprospector.com/en/profile?e=152141

Documents and Downloads
