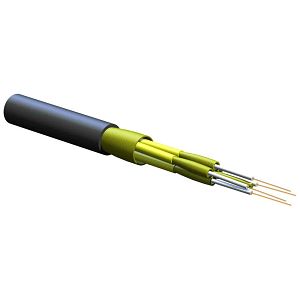

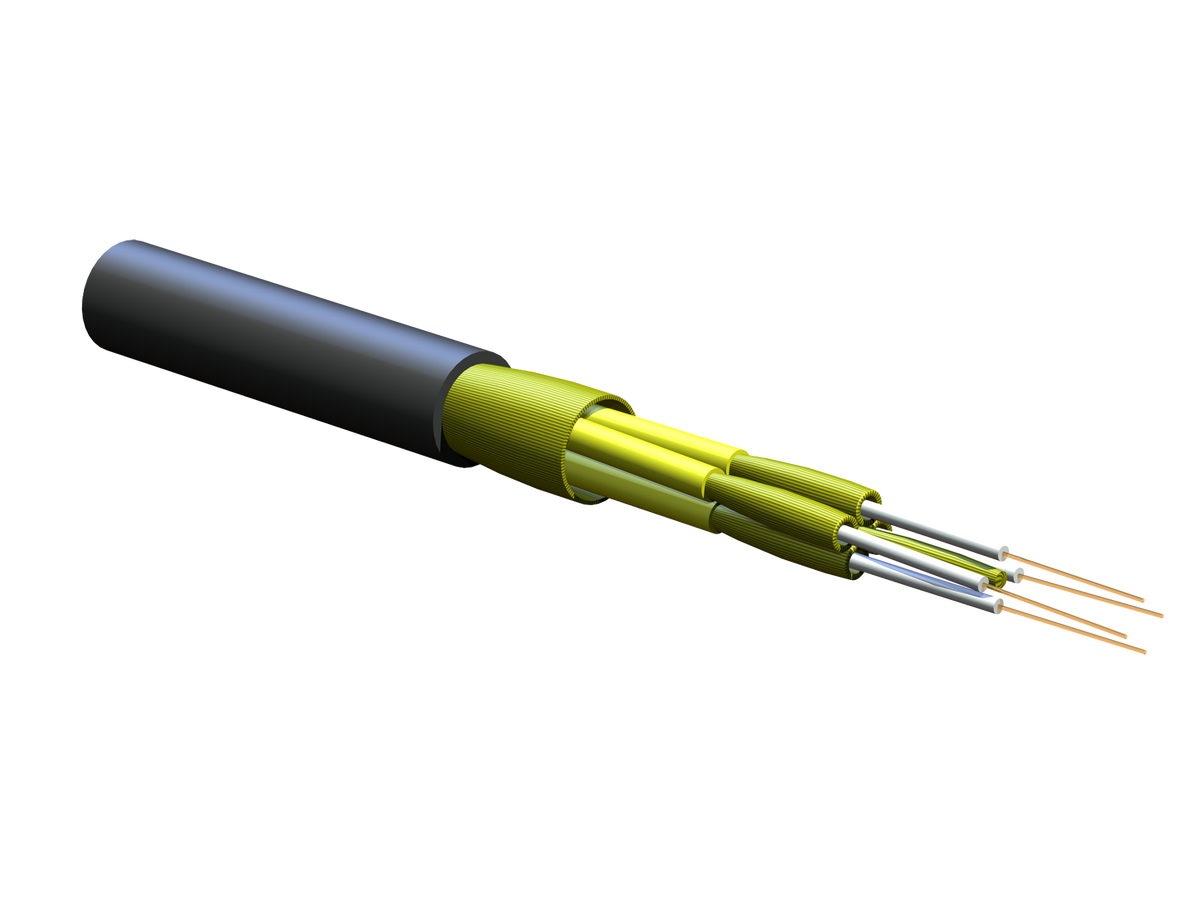

Corning 004E6F-31331-29 | FREEDM Fan-Out Tight-Buffered Cable, Riser
Description
Description

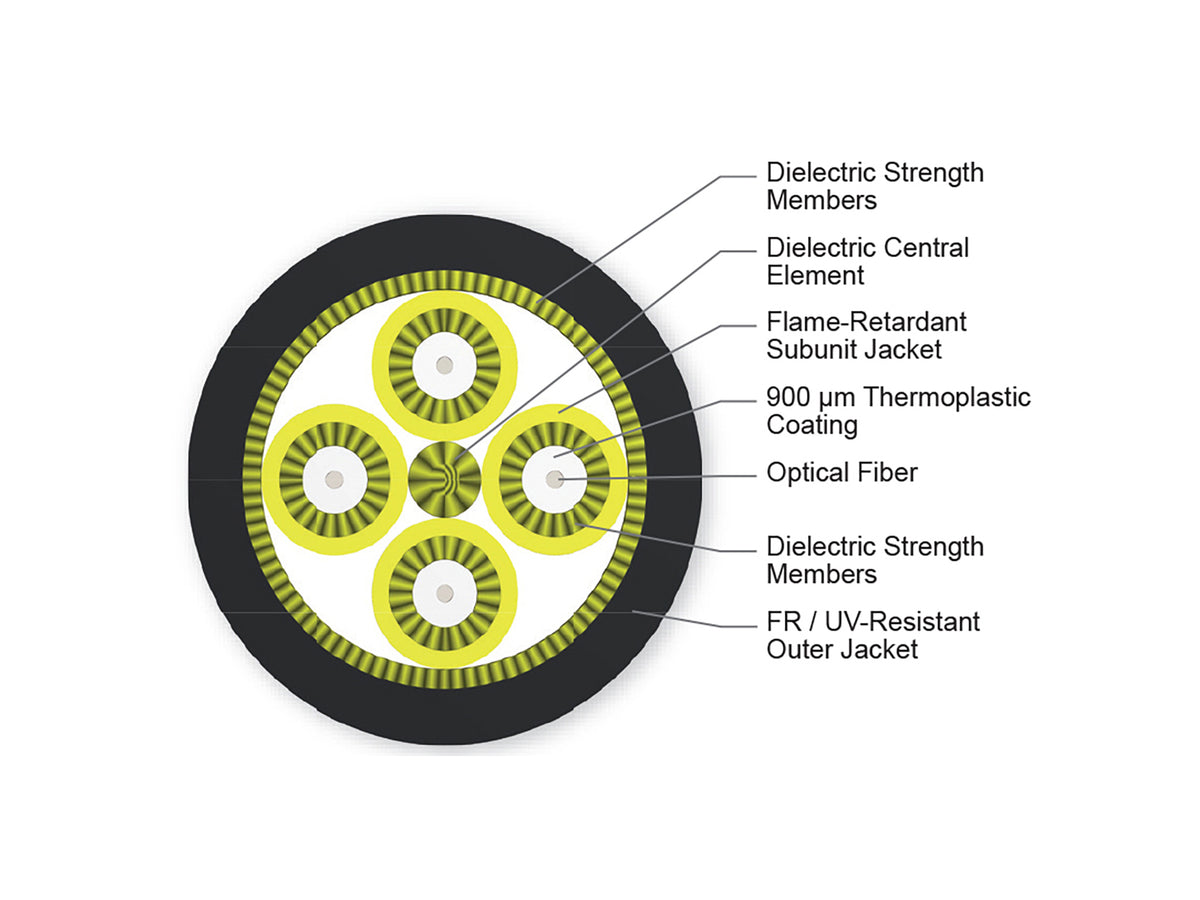

Ideal for providing direct optical connections from indoor and outdoor surveillance cameras to security control locations, these cables can also provide a secure link for surveillance or data. The Fiber are surrounded by water -resistant, dielectric strength members and protected by a flexible, flame - retardant outer jacket. These cables meet the application requirements of the National Electrical Code (NEC Article 770) and are OFNR and FT -4 listed and comply with the ICEA S -104 -696 tests. The all -dielectric cable construction requires no grounding or bonding, and the small diameter and bend radius allow easy installation in space -constrained areas.
Corning - 004E6F-31331-29 - Features
- 900 µm buffered fibers
- Easy, consistent stripping
- 2.0 mm subunits
- Easy field terminations
- Flame-retardant jacket
- Rugged and durable
- Temperature- and water-resistant
- Superior protection
- All-dielectric construction
- Requires no grounding or bonding
Specifications
Specifications
Corning - 004E6F-31331-29 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 004E6F-31331-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 004E6F-31331-29 |
| EAN Code | 4056418151861 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 4 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 70 °C (14 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 4 |
| Buffer Tube Diameter | 2 mm (0.08 in) |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Fiber Coloring | Yellow |
| Number of Active Tubes | 4 |
| Fibers per Tube | 1 |
| Buffer Tube Color Coding | Yellow |
| Number of Tube Positions | 4 |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 105 mm (4.13 in) |
| Min. Bend Radius Operation | 70 mm (2.76 in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 31 kg/km (20.83 lb/1000 ft) |
| Country of Origin | US - United States |
| Brand | FREEDM |
| Flammability Rating | Riser |
| Fiber Count | 4 |
