Brand: Corning
|
SKU:
373-COROS2-RIBUA-288

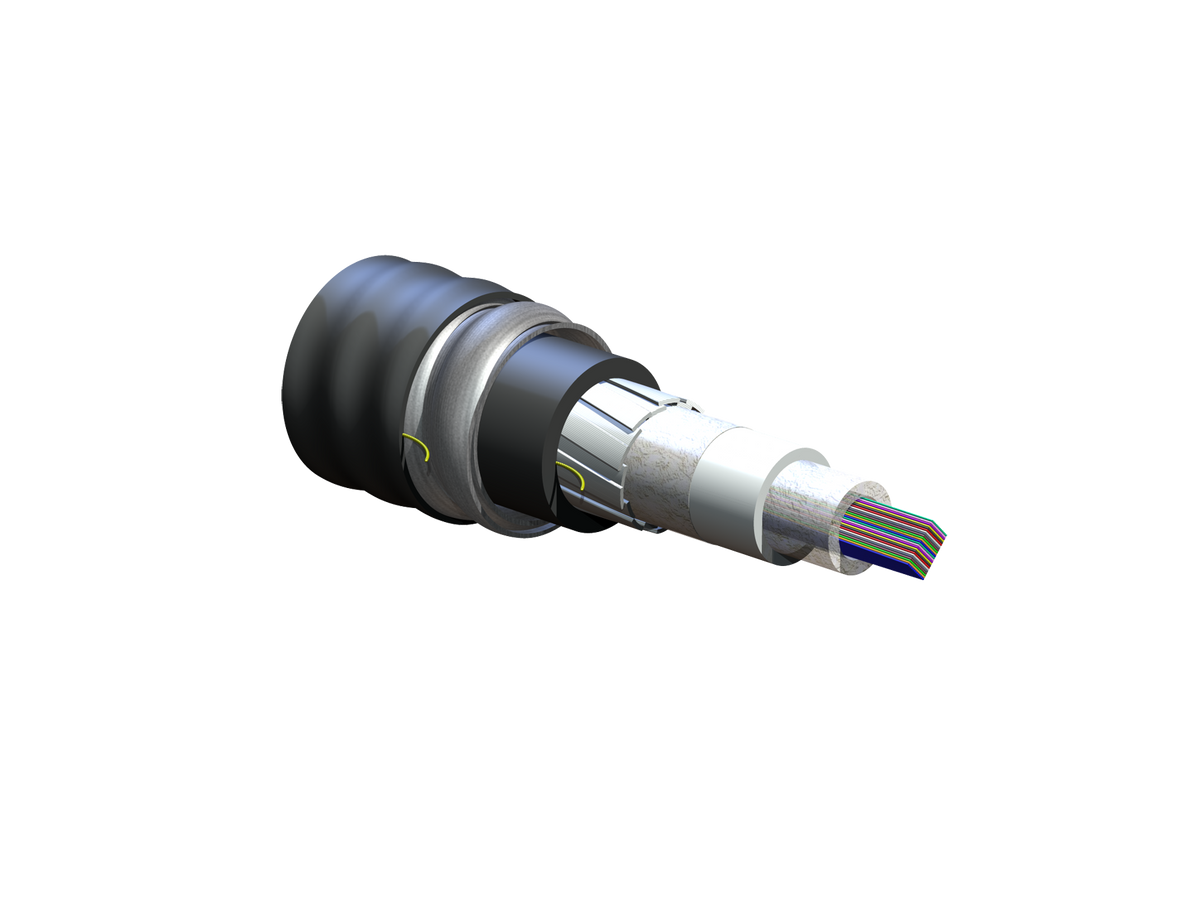

Corning 288ZVF-14101DA1 | FREEDM UltraRibbon Interlocking Armored Gel-Free Cable, Riser
Regular price
$19.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 288ZVF-14101DA1 | FREEDM UltraRibbon Interlocking Armored G...
Regular price
$19.88
Unit price
Brand: Corning
|
SKU:
373-COROS2-RIBUA-288
Regular price
$19.88
Unit price
Shipping calculated at checkout.
Description
Description
Corning 288ZVF-14101DA1 | FREEDM UltraRibbon Interlocking Armored Gel-Free Cable, Riser 288 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 288ZVF-14101DA1 - Features
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Waterblocked cable
- Enables use of cables for outdoor applications
- 12-fiber ribbons with ribbon IDs
- Easy identification
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
- Available in preconnectorized assemblies
- Easy field installation and reduced labor costs
- 288-432 fibers in a compact design
- Maximizes use of critical duct space
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 288ZVF-14101DA1 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor | Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 288ZVF-14101DA1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 288ZVF-14101DA1 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Riser (OFCR) |
| Application | Vertical Riser, Direct Buried, Duct, Aerial, General Purpose Horizontal |
| Fiber Count | 288 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFN-LS, CSA OFN FT-4 |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Temperature Range, Storage | -50 °C to -50 °C (-58 °F to -58 °F ) |

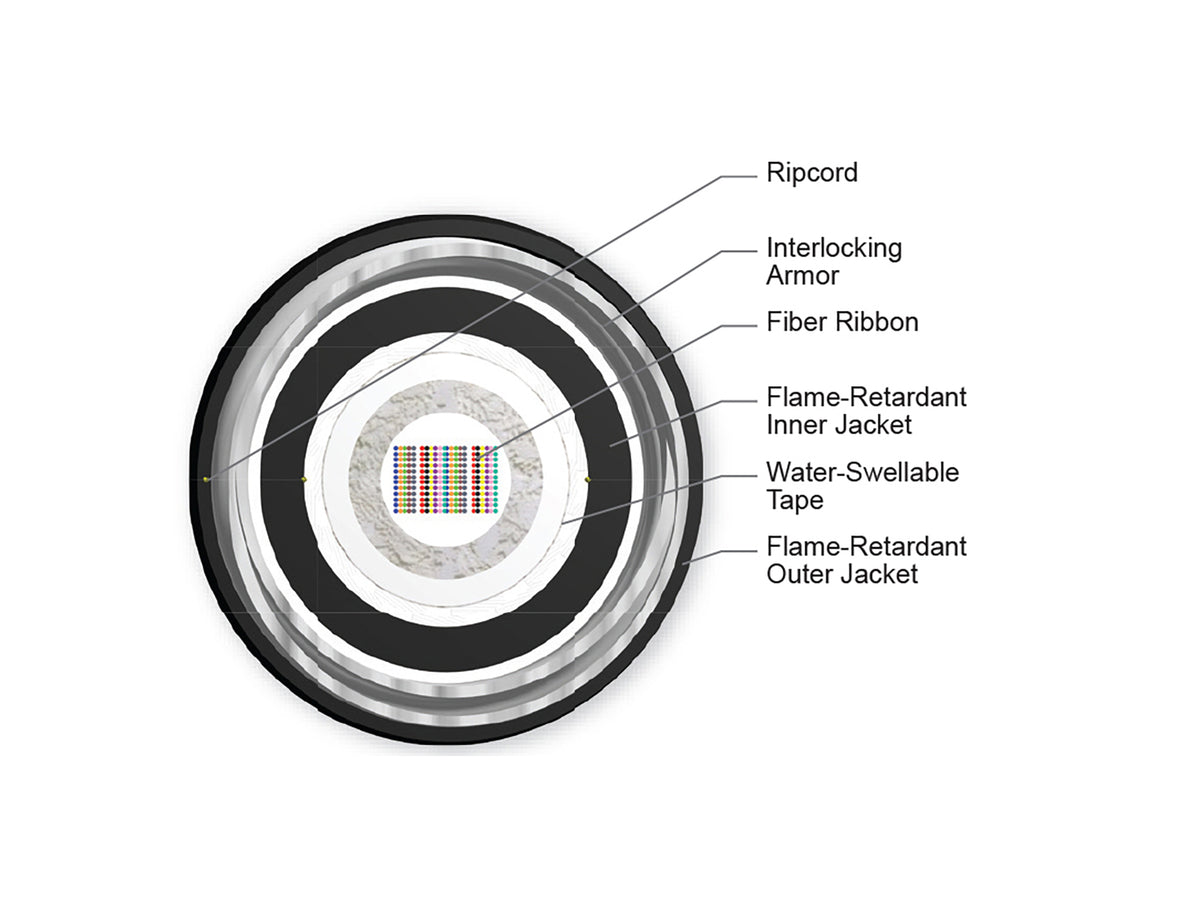

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 288 |
| Buffer Tube Diameter | 14 mm (0.55 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Flame-retardant tape |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Ribbons per Tube | 12 |
| Fibers per Ribbon | 24 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 4365 mm (171.85 in) |
| Min. Bend Radius Operation | 291 mm (11.46 in) |
| Nominal Outer Diameter | 28.7 mm (1.13 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 560 kg/km (376.3 lb/1000 ft) |
| All-Dielectric | YES |
| Armored | YES |
| Cable Type | RIBBON |
| Fiber Count | 288 |
| Fiber Type | OS2 SINGLE-MODE |
| Fire Rating | RISER |
| Rodent Protected | NO |
| UNSPSC Code | 26121607 |
