Brand: Corning
|
SKU:
371-COROS2-TB20AWG-2

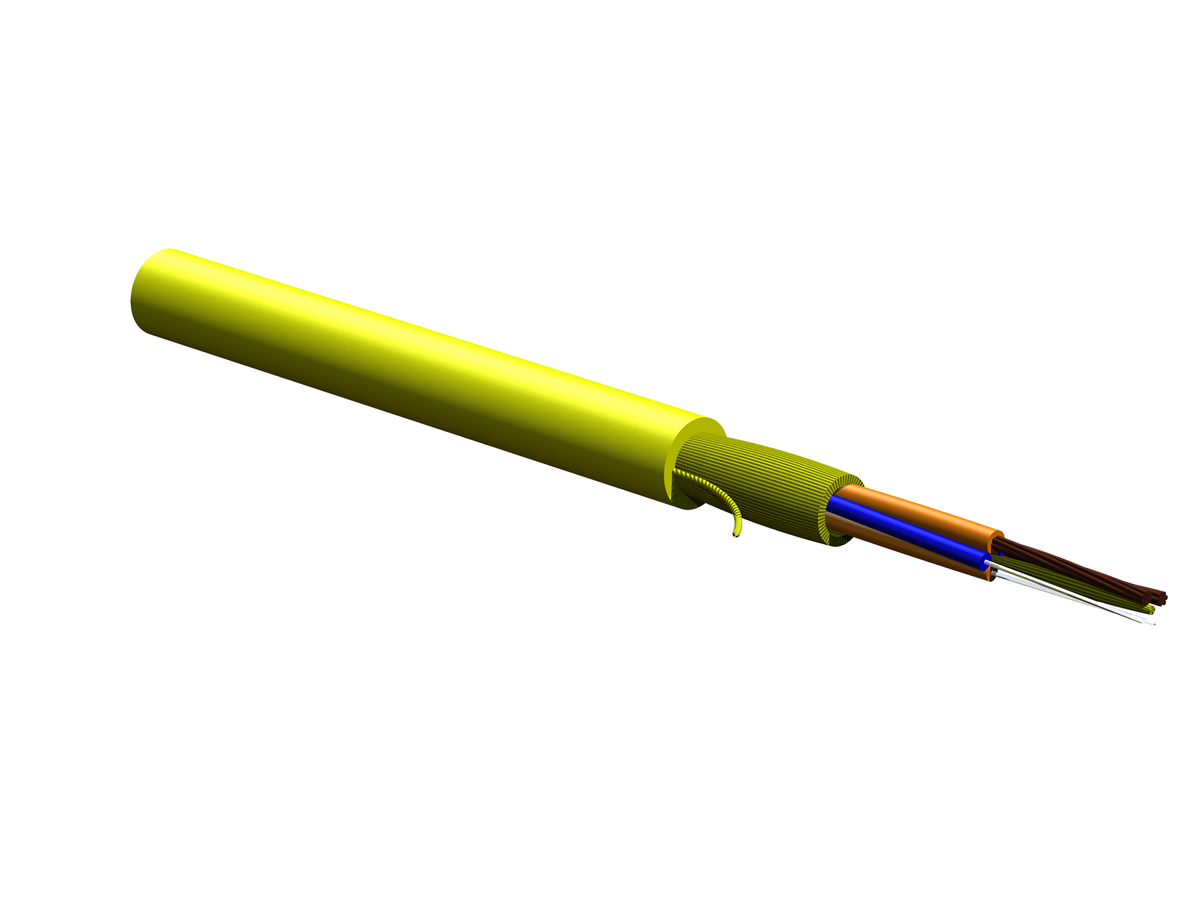

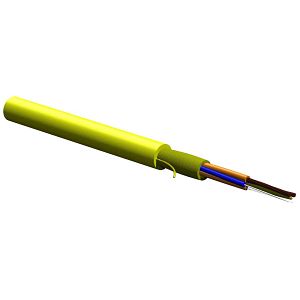

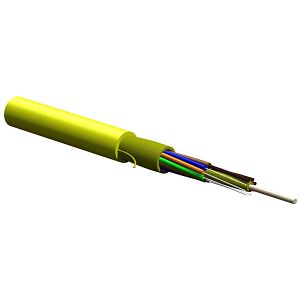

Corning 002Z48-21Z31M29 | ActiFi Composite Cable, Tight-Buffered, Indoor, Plenum
Regular price
$1.45
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002Z48-21Z31M29 | ActiFi Composite Cable, Tight-Buffered, I...
Regular price
$1.45
Unit price
Brand: Corning
|
SKU:
371-COROS2-TB20AWG-2
Regular price
$1.45
Unit price
Description
Description
Corning 002Z48-21Z31M29 | ActiFi Composite Cable, Tight-Buffered, Indoor, Plenum 2 F, 2 Cu Conductor, 20AWG
StandardsRoHS compliantCompliant with ICEA S-104-696 (compliant at tensile loads listed in the specifications table)
Corning - 002Z48-21Z31M29 - Features
- 2-in-1 composite cable design
- One cable meets power and signal needs
- 1, 2, 4 or 6 ClearCurve ZBL or SMF-28 Ultra fibers
- Reliable performance in challenging routes
- 16, 18, or 20 AWG copper conductors
- Power transmission with flexibility in design
- Conductor color code
- Closely follows Telcordia fiber color code
- Mutual capacitance between adjacent conductors
- <50 pF/ft
- Conductor insulation material and thickness
- PVC insulation, thickness varies depending on AWG size
- 900 µm buffered fibers
- Easy, consistent stripping
- Common Installations
- Compliant with ICEA S-83-596
- One cable meets power and signal needs
- Reliable performance in challenging routes
- Power transmission with flexibility in design
- Easy, consistent stripping
Specifications
Specifications
Corning - 002Z48-21Z31M29 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Copper Cabling Infrastructure
- Voice and Data Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 002Z48-21Z31M29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002Z48-21Z31M29 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Plenum |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) Article 800 CSA certified listed to UL 444, CSA C22.2, No. 214 NEC Article 725 Class 3 (CL3P) |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

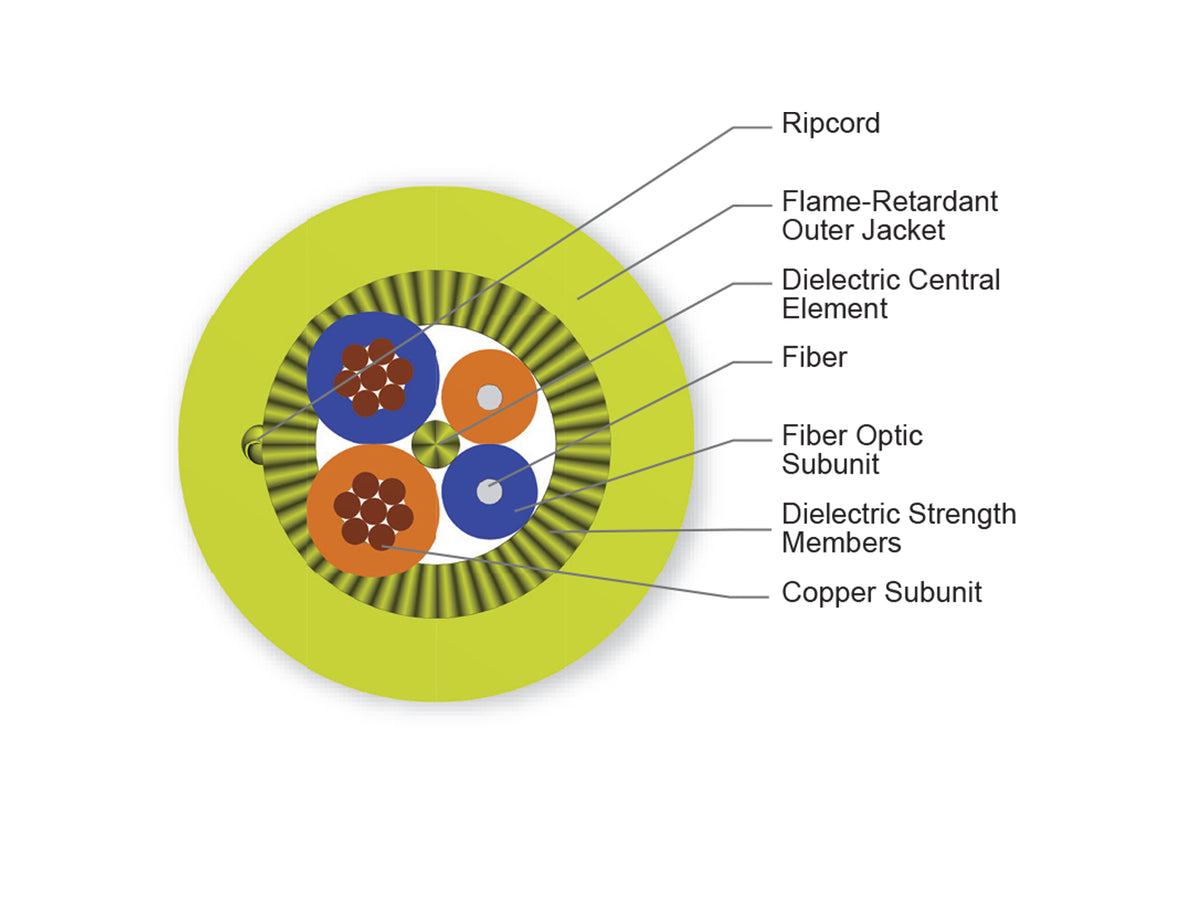

| Cable Design | - |
| Central Element | GRP |
| Fiber Count | 2 |
| Buffer Tube Color | Yellow |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Conductor | 20 AWG |
| Fiber Coloring | Blue, Orange |
| Number of Conductors | 2 |
| Buffer Tube Color Coding | Yellow |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 311 N (69.92 lbf) |
| Min. Bend Radius Installation | 76.2 mm (3 in) |
| Min. Bend Radius Operation | 50.8 mm (2 in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Weight | 349 kg/km (234.52 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| Brand | ActiFi |
| Type | Plenum |
| Conductor Size | 20 AWG |
| Conductor Material | Copper |
| Insulation Material | PVC |
| No. of Conductors | 2 |
