Brand: Alpha Wire
|
SKU:
A-M16119L

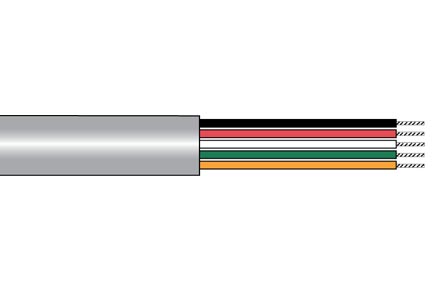

Alpha Wire M16119LW SL199 | Industrial-Series-Cable, IndustrialSeriesM, 19 Conductor, 16 AWG, Unshielded, 600 V, PVC Jacket, PVC/NYLON Insulation, 0.644 Jacket Diameter, 0.065 Jacket Thickness
Regular price
$10.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire M16119LW SL199 | Industrial-Series-Cable, IndustrialSeri...
Regular price
$10.92
Unit price
Description
Description
Alpha Wire M16119LW SL199 - SERIES M BLUE - 16-19C (65/34) STR BC PVC/NYL
Key Features
- 18 – 8 AWG
- 3 – 65 conductors
- PVC/nylon insulation
- Oil-resistant PVC jacket
- UL Type TC-ER (600 V)
- UL Type MTW (600V)
- UL Type WTTC (600V)
- UL Type PLTC (300 V) (18-12AWG only)
- Direct burial
- Sunlight resistant
- UL Oil Res. I
- Rated for up to 1.5 million flex life cycles
Specifications
Specifications
Specifications
| Component 1 | 19 X 1 COND |
|---|---|
| Conductor | 16 (26/30) AWG Bare Copper |
| Insulation | 0.016" Wall, Nom. PVC/ 0.005" Wall NYLON |
| ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING ANDINVERTED | |
| Cable Assembly | 19 Components Cabled |
| Twists: | 1.7 Twists/foot (min) |
| Orientation: | Components to be arranged from OUTSIDE LAYER to INSIDE LAYER |
| Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| Jacket | 0.065" Wall, Nom.,PVC |
| Color(s) | SLATE |
| ALPHA WIRE-* P/N M16119LW 19C 16 AWG (1.32mm2) SERIES M (UL) WTTC 90C WET/DRY 1000V OR(UL) TC-ER 90C WET/DRY 600V SUN RESDIR BUR OIL RES I OR MTW 16 AWG OR (UL) PLTC 90COR CRU AWM I/II A/B 90C 600V FT4CE ROHS (DATE CODE) (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 90°C(static), -5 to 90°C (dynamic) |
| Bend Radius | 8X Cable Diameter(static), 8X Cable Diameter(dynamic) |
| Pull Tension | 388 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Direct Burial | Yes |
| Voltage Rating | 600 VRMS |
| Capacitance | 32 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 4.1 ?/1000ft @20°C, Nominal |
