Brand: Lapp Group
|
SKU:
OLF-4160400
Lapp Group 4160400 | Multi-Standard Cable, Green, Yellow, 450 to 750 V, 600 V
Regular price
$483.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 4160400 | Multi-Standard Cable, Green, Yellow, 450 to 75...
Regular price
$483.27
Unit price
Brand: Lapp Group
|
SKU:
OLF-4160400
Regular price
$483.27
Unit price
Shipping calculated at checkout.
Description
Description

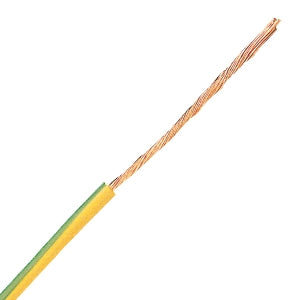

Lapp Group 4160400 | Multi-Standard Cable, Green, Yellow, 450 to 750 V, 600 V
Multi-Standard Cable; Green, Yellow; 450 to 750 V, 600 V; 16 AWG; Stranded; 1; Tin-Plated Copper; 3.1mm Nominal Outside Diameter; 30 Str; 12.4mm; PVC Insulation; -40 to +70 C
Specifications
Specifications
Lapp Group - 4160400 - Product Categories
- Electronic Wire and Cable
- Hook Up, Lead Wire and Automotive Wire
- Hook Up and Lead Wire
- International
Lapp Group - 4160400 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 4160400 |
| Approval Listings | Ul, Ce, Csa |
| Item Description | Multi-Standard Cable, Green, Yellow, 450 to 750 V, 600 V |
| Bend Radius | 12.4Mm |
| Csa | Csa Type Tew |
| Cable Type | Power/Control Cable |
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 30 Strands Per Conductor |
| Insulation Color | Green With Yellow Stripe |
| Insulation Material | Polyvinylchloride |
| Jacket Color | Green; Yellow |
| Nominal O.D. | 3.1 Mm |
| Notes/Special Features | European Hook-Up Wire Type H07V-K |
| Number Of Conductors | 1 |
| Outside Diameter | 3.1 |
| Package Length | 100M |
| Package Type | Ring |
| Product Type | Multi-Standard Cable |
| Rohs Compliant | No |
| Shield Type | Unshielded |
| Special Rating | Ul Type Awm |
| Temperature Rating | 70 Degrees Centigrade |
| Voltage | 450 V; 750 V |
| Weight | 22Kg |
