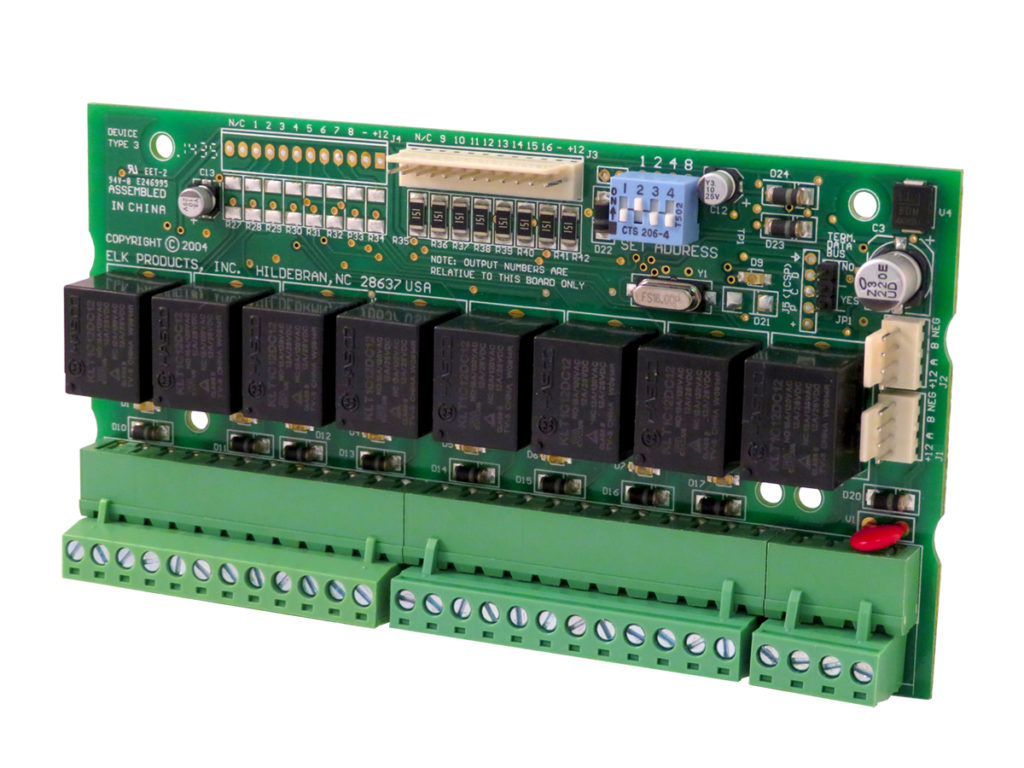

Elk Products Inc. ELK-M1XOVR | 16 Output Expander, 8 Voltage & 8 Relays

Elk Products Inc. - ELK-M1XOVR - Features

• 8 Voltage Outputs
• 8 Single-Pole, Double-Pole Relay Outputs
• Operates on the 4-Wire Data Bus
• DIP Switch Address Settings
• One (1) - Twelve (12) Conductor "Flying Lead" Wire Harness
• Voltage Outputs may be converted to Relays using M1RB Relay Boards
• StaLED with Diagnostic Display
• Mounts in Enclosure using ELK-SWG Glides, SWP or SWP3 Structured Wire Plates, or Double Sided Foam Tape
• Status LED with Diagnostic Display
• Voltage Outputs 12 VDC @ 50 mA each
• Relay Outputs SPDT rated for 7 Amps @ 28VDC, 10 Amps @ 125 VDC
• Wire Harness Length 12"
• Operating Power Range 9 to 14 VDC
• Current Draw 65 mA Nom., 330 mA Max.
• Size 6" x 3.25" x .75" H
