Tripp-Lite B004-DUA4-K-R | 4-Port DVI/USB KVM Switch with Audio and Cables
Regular price
$296.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Tripp-Lite B004-DUA4-K-R | 4-Port DVI/USB KVM Switch with Audio and Cables
Features
- Fast, easy switching via keyboard hotkeys or pushbuttons
- Plug-and-play setup - no software required
- Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers
- Speaker and microphone connections allow for the sharing of audio components between systems
- Supports 2-Channel Stereo Audio
- Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.
- Uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor.
- To connect to a HDMI monitor, a DVI to HDMI adapter such as Tripp Lite's P132-000 is required (Audio is not supported when converting from DVI to HDMI).
- Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
- Supports Microsoft IntelliMouse and the scrolling wheel on most mice

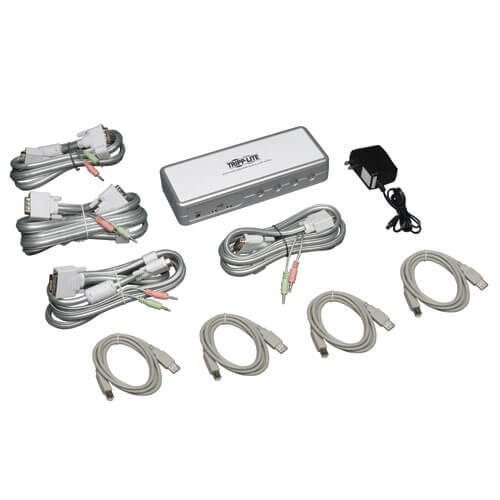

- (x4) 6ft USB cables and (x4) 6-ft. (1.83 m) DVI + Audio KVM cable kits included
- Compatible with all major operating systems
Features & Specifications
| Autoscan (Y,N) | Y |
|---|---|
| Autoscan Duration | 10 TO 100 SECONDS (SELECTABLE IN 10 SECOND INTERVALS) |
| Number of Users | 1 |
| NIAP-Certified Secure | No |
Specifications
Specifications
Overview
| UPC Code | 37332167903 |
|---|---|
| Max CPU | 4 |
| Technology | USB 2.0 (High Speed); DVI; USB; Stereo Audio |
Video
| Max Supported Video Resolution | 1920 x 1200 (Digital), 2048 x 1536 (Analog) |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.8A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 3A |
| External Power Supply Cord Length (ft.) | 6 |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.5 x 10mm; Positive Pin; Negative Sleeve |
| External Power Supply Certifications | BS; CE; FCC; GS; TUV; UL; cUL |
User Interface, Alerts & Controls
| LED Indicators | Blue (Selected PC) |
|---|
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0%-90% RH, Non-Condensing |
| BTUs | 27.3 BTU/Hr |
| Power Consumption (Watts) | 8 |
Communications
| IP Remote Access | No |
|---|
Connections
| Ports | 4 |
|---|---|
| PC/Server Connections | DVI; USB |
| Side A - Connector 1 | (4) DVI-I (FEMALE) |
| Side A - Connector 2 | (4) USB B (FEMALE) |
| Side B - Connector 1 | DVI-I (FEMALE) |
| Side B - Connector 2 | (6) USB A (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
