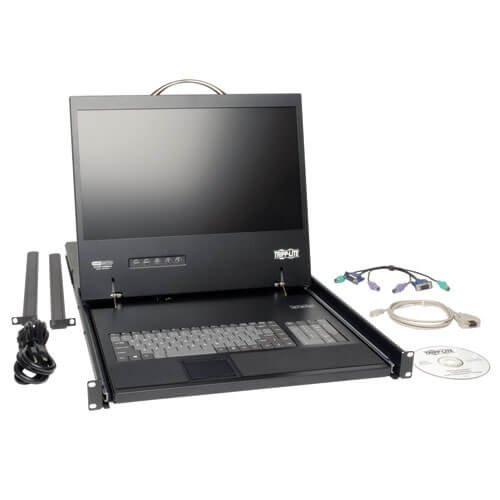

Tripp-Lite B070-016-19 | NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD

Features

• Saves Space and Money

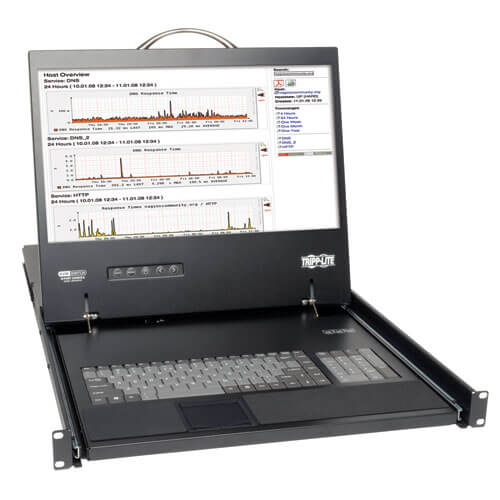

• Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
• Mounts into 19”-wide rack, 27”-42” deep; can be mounted in 2-post rack with Tripp Lite’s B019-000
• Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
• Eliminates need to buy costly monitors, keyboards and mice for each computer/server
• Uses inexpensive Cat5e/6/6a Cables
• Low-cost cables lets you locate servers up to 100 ft. from the switch
• Use plug-and-play Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable
• For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
• Simplifies IT Tasks
• Switch easily between the 16 ports via on-screen display or keyboard hot key commands
• Hot pluggable; add or remove USB computers without having to power down the switch
• Auto-scan mode automatically sequences through all active ports accessible to the user
• Large 19” LCD
• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1366 x 768
• DDC emulation allows optimal output to the LCD
• Multi-Level Password Security
• Multi-level password security limits access to authorized users (administrator, supervisor or user)
• Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed
• Expandability and Long-Lasting Reliability
• Control your servers from anywhere in the world over LAN, WAN or the Internet by adding a Tripp Lite B051-000 IP Remote Access Unit
• Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station using Tripp Lite's B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
• Compatible with all major operating systems for easy integration into your existing structure
• Firmware is upgradable with included cable and utility
• Heavy-duty steel housing stands up to frequent use
• TAA Compliant
• Complies with the Federal Trade Agreements Act for GSA Schedule purchases
