Brand: Lapp Group
|
SKU:
OLF-4160701

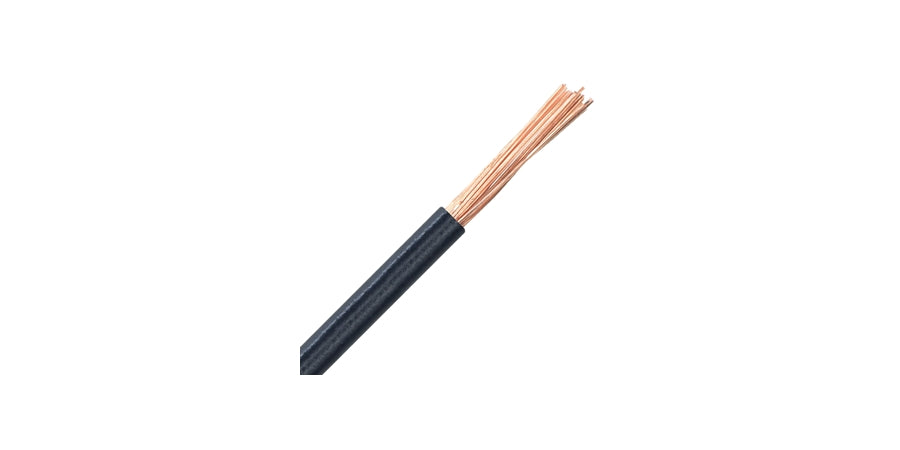

Lapp Group 4160701 | Multi-Standard Cable, Black, 450 to 750 V, 600 V, 10 AWG, 1
Regular price
$1,327.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 4160701 | Multi-Standard Cable, Black, 450 to 750 V, 600...
Regular price
$1,327.01
Unit price
Brand: Lapp Group
|
SKU:
OLF-4160701
Regular price
$1,327.01
Unit price
Shipping calculated at checkout.
Description
Description
Lapp Group 4160701 | Multi-Standard Cable, Black, 450 to 750 V, 600 V, 10 AWG, 1
Multi-Standard Cable; Black; 450 to 750 V, 600 V; 10 AWG; Stranded; 1; Tin-Plated Copper; 4.8mm Nominal Outside Diameter; 84 Str; 19.2mm; PVC Insulation; -40 to +70 C
Specifications
Specifications
Lapp Group - 4160701 - Product Categories
- Electronic Wire and Cable
- Hook Up, Lead Wire and Automotive Wire
- Hook Up and Lead Wire
- International
Lapp Group - 4160701 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 4160701 |
| Approval Listings | Ul, Ce, Csa |
| Item Description | Multi-Standard Cable, Black, 450 to 750 V, 600 V, 10 AWG, 1 |
| Bend Radius | 19.2Mm |
| Csa | Csa Type Tew |
| Cable Type | Power/Control Cable |
| Conductor Material | Tinned Copper |
| Conductor Size | 10 Awg |
| Conductor Stranding | 84 Strands Per Conductor |
| Insulation Color | Black |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Nominal O.D. | 4.8 Mm |
| Notes/Special Features | European Hook-Up Wire Type H07V-K |
| Number Of Conductors | 1 |
| Outside Diameter | 6Mm |
| Package Length | 100M |
| Package Type | Ring |
| Product Type | Single Core Multi-Standard Cable |
| Rohs Compliant | Yes |
| Shield Type | Unshielded |
| Special Rating | Ul Type Awm |
| Temperature Rating | 70 Degrees Centigrade |
| Voltage | 450 V; 750 V |
| Weight | 67Kg |
