Brand: Lapp Group
|
SKU:
O4520001

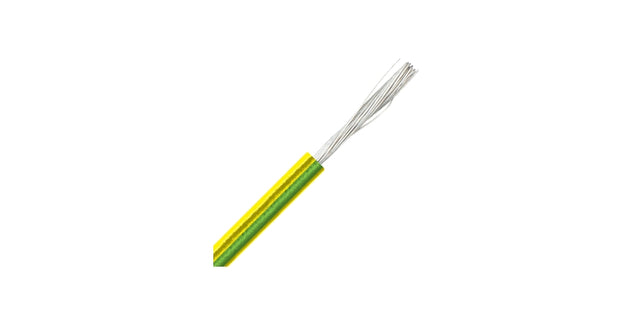

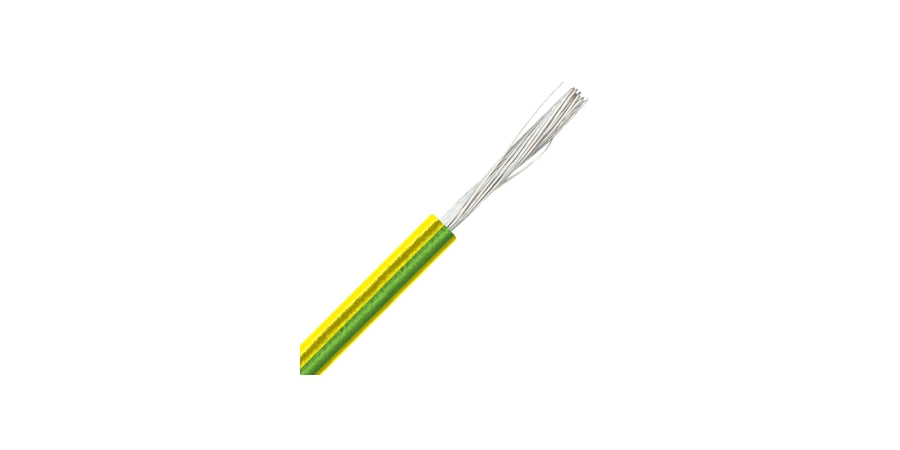

Lapp Group 4520001 | Multi-Standard Cable, Green, Yellow, 450 to 750 V, 16 AWG
Regular price
$307.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 4520001 | Multi-Standard Cable, Green, Yellow, 450 to 75...
Regular price
$307.10
Unit price
Description
Description
Lapp Group 4520001 | Multi-Standard Cable, Green, Yellow, 450 to 750 V, 16 AWG
This hook-up wire is HAR approved and conforms to European standards. it can be used to wire electronic and electrical equipment for export to Europe.
Specifications
Specifications
Lapp Group - 4520001 - Product Categories
- Electronic Wire and Cable
- Hook Up, Lead Wire and Automotive Wire
- Hook Up and Lead Wire
- International
Lapp Group - 4520001 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 4520001 |
| Bend Radius | 13.6Mm |
| Item Description | Multi-Standard Cable, Green, Yellow, 450 to 750 V, 16 AWG |
| Conductor Count | 1 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 30 Strands |
| Insulation Color | Green With Yellow Stripe |
| Insulation Material | Polyvinyl Chloride |
| Jacket Color | Green; Yellow |
| Jacket Material | Polyvinyl Chloride |
| Nominal O.D. | 3.4 Mm |
| Number Of Conductors | 1 |
| Outside Diameter | 3.4 Mm |
| Product Type | Single Core Multi-Standard Cable |
| Rohs Compliant | Yes |
| Shield Type | Unshielded |
| Temperature Rating | 70 Degrees Centigrade |
| Voltage | 450 V; 750 V |
