Brand: Lapp Group
|
SKU:
S1138

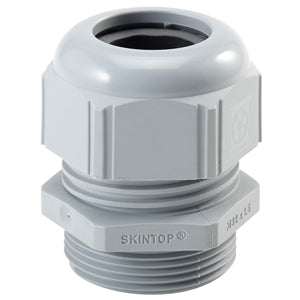

Lapp Group S1138 | Cable Gland, Polyamide Body, 3/8 in., 3.5mm, 8mm, Straight, NPT Thread
Regular price
$1.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group S1138 | Cable Gland, Polyamide Body, 3/8 in., 3.5mm, 8mm...
Regular price
$1.70
Unit price
Description
Description
Lapp Group S1138 | Cable Gland, Polyamide Body, 3/8 in., 3.5mm, 8mm, Straight, NPT Thread
SKINTOP SLR is a durable, liquid-tight, easy-to-assemble strain relief cable gland with PG thread that is universally suited for all types of machinery and equipment, including automation, motion control, process control and robotics.
Lapp Group - S1138 - Features
- The heavy duty LAPP SKINTOP design provides great pullout strength and very reliable strain relief
- Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
- Multi-trapezoidal thread requires just one twist to tighten
- Generous high-quality neoprene bushing provides a liquid-tight and dust-proof hermetic seal
Specifications
Specifications
Lapp Group - S1138 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Lapp Group - S1138 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | S1138 |
| Body Material | Polyamide |
| Item Description | Cable Gland, Polyamide Body, 3/8 in., 3.5mm, 8mm, Straight, NPT Thread |
| Cable Outside Diameter Maximum | 8Mm |
| Cable Outside Diameter Minimum | 3.5Mm |
| Cable Range | 3.5 To 8Mm |
| Color | Gray |
| Connection Rating | Liquid-Tight |
| Connection Type | Straight Male |
| Connector Angle | Straight |
| Dimensions | L: 1.693 In. |
| Hub Size | 3/8 In. |
| Ip Rating | Ip68 |
| Nema Rating | Nema 1, 12 |
| Od Min-Max Average | 0.20 In. |
| Product Type | Cable Gland |
| Special Rating | Liquid-Tight, Ip68, Nema 1, 12 |
| Temperature Rating | -40 To 100 Deg C |
| Thread Type | Npt |
| Trade Size | 0.375 In. |
| Type | Flexible Cord Connector |
