Brand: Lapp Group
|
SKU:
S2536

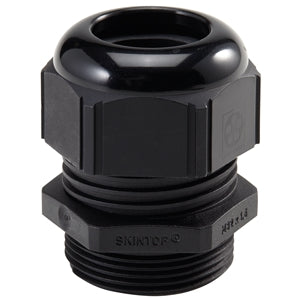

Lapp Group S2536 | Cable Gland, Polyamide Body, 50mm, 27mm, 34mm, Straight, Metric Thread, IP68, IP69K
Regular price
$26.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group S2536 | Cable Gland, Polyamide Body, 50mm, 27mm, 34mm, S...
Regular price
$26.90
Unit price
Description
Description
Lapp Group S2536 | Cable Gland, Polyamide Body, 50mm, 27mm, 34mm, Straight, Metric Thread, IP68, IP69K
SKINTOP SLR is a durable, liquid-tight, easy-to-assemble strain relief cable gland with PG thread that is universally suited for all types of machinery and equipment, including automation, motion control, process control and robotics.
Lapp Group - S2536 - Features
- The heavy duty LAPP SKINTOP design provides great pullout strength and very reliable strain relief
- Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
- Multi-trapezoidal thread requires just one twist to tighten
- Generous high-quality neoprene bushing provides a liquid-tight and dust-proof hermetic seal
Specifications
Specifications
Lapp Group - S2536 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Cord Grips
Lapp Group - S2536 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | S2536 |
| Armored/Unarmored | For Use With Unarmored Cable |
| Item Description | Cable Gland, Polyamide Body, 50mm, 27mm, 34mm, Straight, Metric Thread, IP68, IP69K |
| Body Material | Polyamide |
| Cable Outside Diameter Maximum | 34Mm |
| Cable Outside Diameter Minimum | 27Mm |
| Cable Range | 27 To 34Mm |
| Color Code | Black |
| Color | Black |
| Connection Rating | Liquid-Tight |
| Connection Type | Straight Male |
| Connector Angle | Straight |
| Dimensions | L: 2.441 In. |
| Explosion Proof | No |
| Hub Size | M50X1.5 |
| Ip Rating | Ip68/Ip69K |
| Material | Nonmetallic |
| Nema Rating | Nema 1, 12 |
| Od - Min-Max Average | 1.22 In. |
| Od Max | 1.38 In. |
| Od Min | 1.06 In. |
| Product Type | Cable Gland |
| Special Rating | Ip68, Ip69K, Nema 1, 12 |
| Temperature Rating | -40 To +100 C |
| Thread Size | M50 X 1.5 |
| Thread Type | Metric |
| Trade Size | M50 |
| Type | Cable Gland |
