Brand: Belden
|
SKU:
5MB-0801-B-03

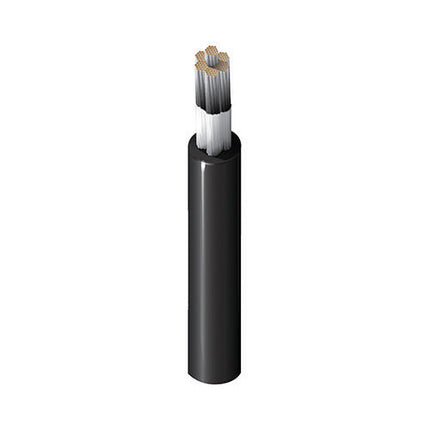

Belden 31508 002500 | Lead Wire, #8 Str TC, Neoprene Ins, AWM 3048
Regular price
$8.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 31508 002500 | Lead Wire, #8 Str TC, Neoprene Ins, AWM 3048
Regular price
$8.02
Unit price
Description
Description
Low Temp Rubber Lead Wire, 8AWG (84x27) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C
Specifications
Specifications
Temperature Range
| Non-UL Temp Rating | 90°C |
|---|---|
| UL Temp Rating | 90°C |
| Operating Temp Range | -30°C To +90°C |
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C) |
|---|---|
| Bulk Cable Weight | 85 lbs/1000ft |
Standards
| UL AWM Style Compliance | UL AWM Style 3048 |
|---|
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
