Brand: Atlas Sound | SKU: 10230500

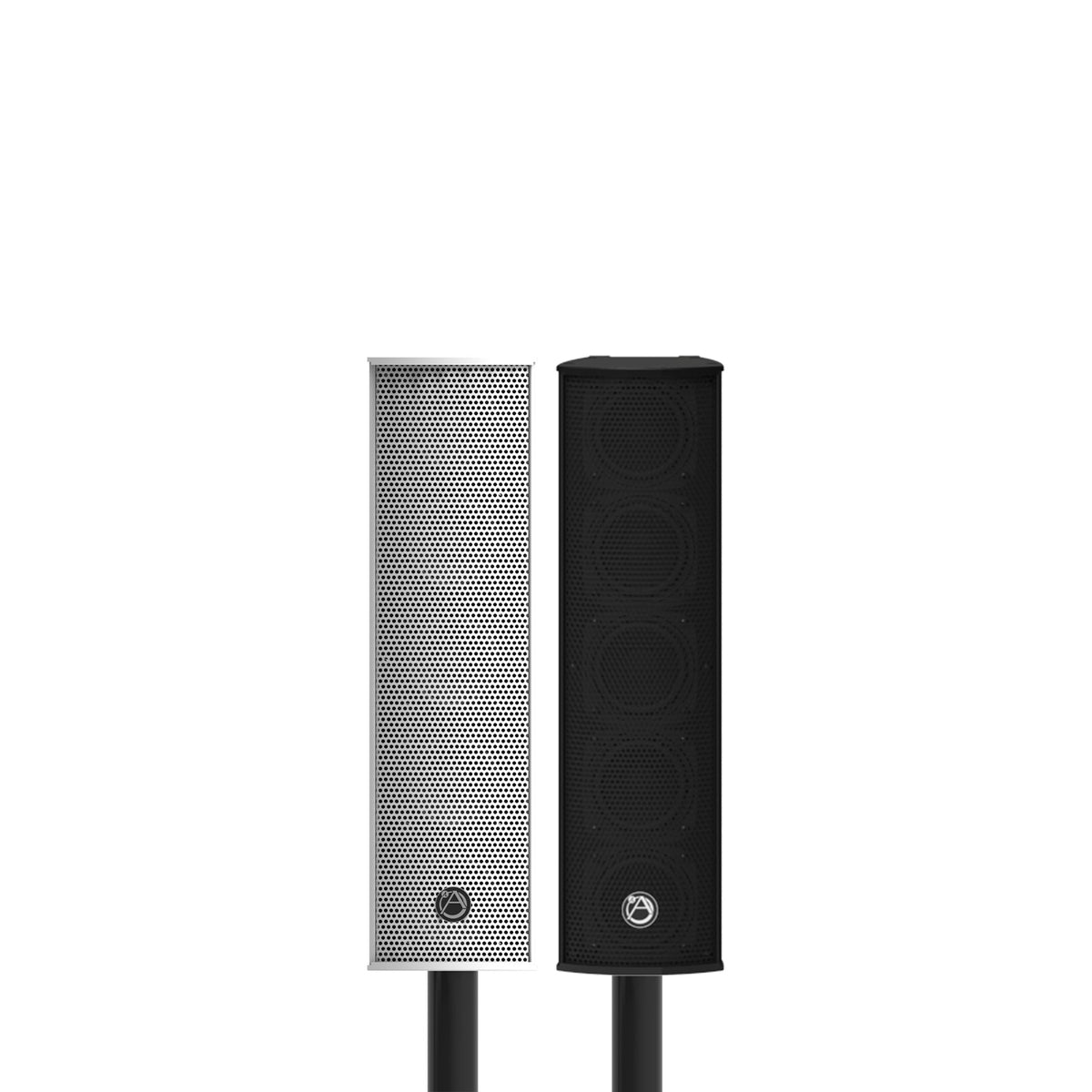

Atlas Sound ALA5TAW | EN54-24 Certified 5 Speaker Full Range Line Array Speaker System in Black or White Finish

Regular price $721.18
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Atlas Sound ALA5TAW | EN54-24 Certified 5 Speaker Full Range Line Array Speaker System in Black or White Finish

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system. Note: Pole and pole mount bracket sold separately.

Atlas Sound - ALA5TAW - Features

  • 45° Vertical Coverage
  • 135° Horizontal Coverage
  • Two (2) High Frequency Tweeters
  • Five (5) Proprietary 3" (76mm) Full Range Drivers
  • Barrier Strip and NL-4 Terminals
  • Lightweight Aluminum Housing
  • Wall Mount Bracket Included

Specifications

Atlas Sound - ALA5TAW - Product Categories

  • Shop by Manufacturer/Atlas Sound
  • Audio and Visual
  • Audio Equipment
  • Speakers
  • Line Columns & Arrays
  • ALA Series Column Arrays

Atlas Sound - ALA5TAW - Related Products

  • EJW115A-B - 15" Powered Subwoofer System for Portable Installations - Black
  • EJW115A-B - 15" Passive Subwoofer System for Portable Installations - Black

Atlas Sound - ALA5TAW - Specifications

6? RMS Power375 Watts
70.7V Power Taps60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6?)
100V Power Taps60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6?)
Dispersion135° H x 45° V
Sensitivity92dB (1W/1m)
Sensitivity (EN54-24)78dB (1W/4m)
Frequency Response137Hz - 20kHz (+/-5dB)
Height16.61" (422mm)
Depth5.43" (137.9mm)
Width4.61" (117mm)
UNSPSC Code52161600
