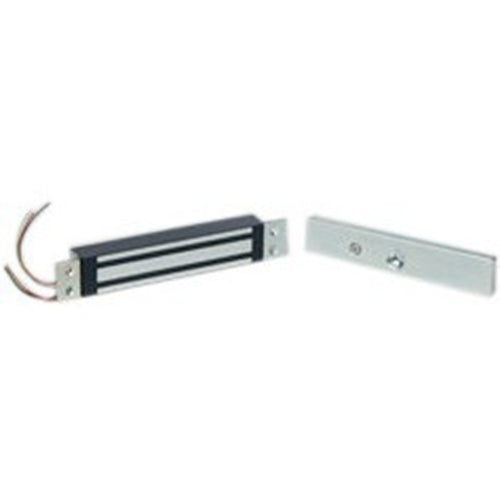

Camden Door Controls CX-91M-06 | Single Door Magnetic Lock, Mortise Mount, 600 lbs
Regular price
$181.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CX-91M-06 | Single Door Magnetic Lock, Mortise...
Regular price
$181.82
Unit price
Brand: Camden Door Controls
|
SKU:
765721
Regular price
$181.82
Unit price
Shipping calculated at checkout.
Description
Description
The Camden CX-91M-06 single door magnetic locks offers the best performance and value. The unit has a holding force of 600 lbs and is designed for single doors and mortise mounting.
Key Features
- 600 lb single door models are UL and CUL listed
- Weather and vandal resistant construction proven over thousands of installations
- Mortise mount model
- Compatible with all access/egress systems
- Field selectable 12/24V DC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime Warranty
Specifications
Specifications
Specifications
| UPC | 670454150301 |
|---|---|
| Also known as | CX91M06, CM-CX91M06 |
| Voltage | 12/24V DC |
| Current Draw | 480mA@12V DC, 240mA@24V DC |
| Temp Range | 5F - 122F (-15C to 50C) |
| Contact Rating | TDS versions |
| Bond Sensor | 1A@30V DC |
| Door Status Switch | 0.5A@30V AC/DC |
| Dimensions | 9" x 1 1/2" x 1 1/8" (229mm x 38mm x 29mm) |
