Brand: Camden Door Controls | SKU: 765510

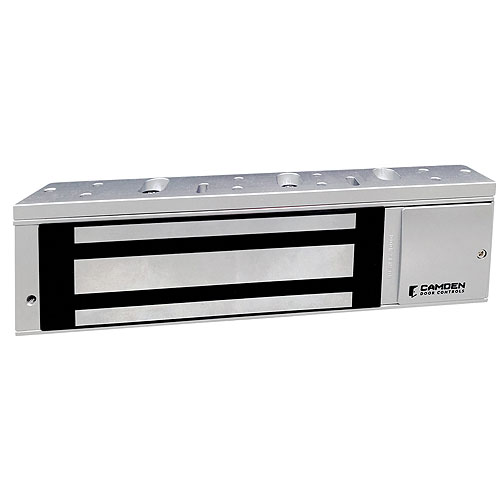

Camden Door Controls CM-CX-91S-12TDS | Single Door Magnetic Lock, 1200lb, Surface Mount, Adjustable Timer, Door Status Switch, Lock Sensor/Relay, LED

$235.23

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The Camden CX-91S-12TDS is a single door magnalock with a holding force of 1200 lbs that can be surface mounted. The magnalock is equipped with an adjustable timer, door status switch, lock sensor & relay and an LED.

Key Features

1200 lbs single door models are UL and CUL listed
Weather and vandal resistant construction proven over thousands of installations
Surface mount models
Compatible with all access/egress systems
Field selectable 12/24V DC operation
On board MOV power surge protection prevents damage to mag lock
A wide range of mounting brackets and spacers available
Lifetime Warranty

Specifications

UPC	670454155047
Also known as	CX91S12TDS, CM-CX91S12TD
Voltage	12/24V DC
Current Draw	500mA@12V DC 250mA@24V DC
Temp Range	5F - 122F (-15C to 50C)
Contact Rating	TDS versions
Bond Sensor	1A@30V DC
Door Status Switch	0.5A@30V AC/DC
Dimensions	10 1/2" x 2 7/8" x 1 7/8" (267mm x 73mm x 48mm)
Armature Plate	7 15/16" x 3" x 5/8" (202mm x 76mm x 16mm)

Documents and Downloads
