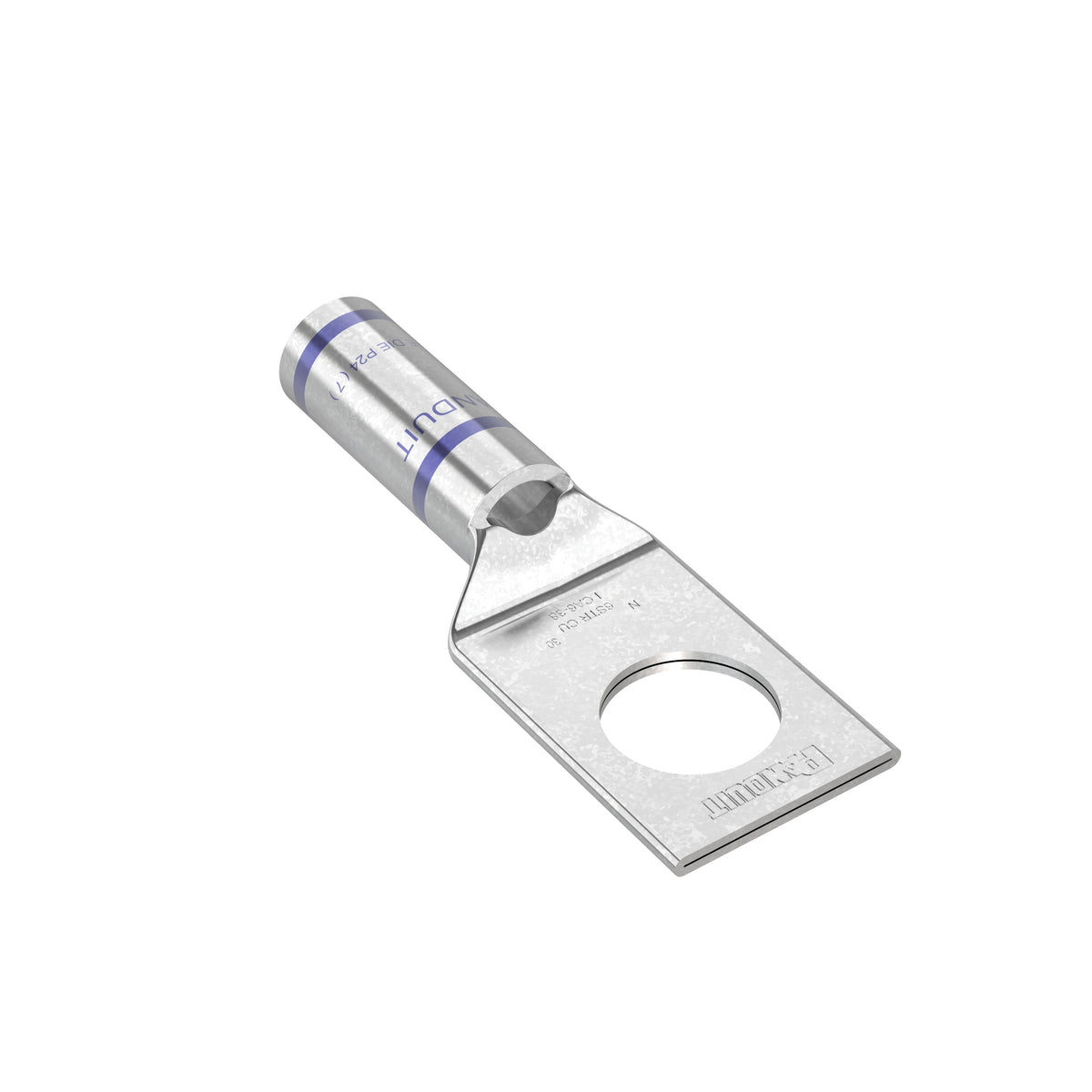

Panduit LCA6-38-L | Pan-Lug Comp. Lug, 6, Tin Plt Copper, Strt, One 3/8" Stud, PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA6-38-L | Pan-Lug Comp. Lug, 6, Tin Plt Copper, Strt, One...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, #6 AWG wire, 3/8" stud hole.
Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 3/8 in Stud, Straight Tongue, 0.62 in W x 0.06 in THK Tongue, 1.83 in Overall Length, Standard/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 7/8 in Mounting Hole, Copper, Blue
Panduit - LCA6-38-L - Features
- Straight tongue angle
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA6-38-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA6-38-L |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 6 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| UPC | 07498390008 |
