Brand: Panduit
|
SKU:
972600

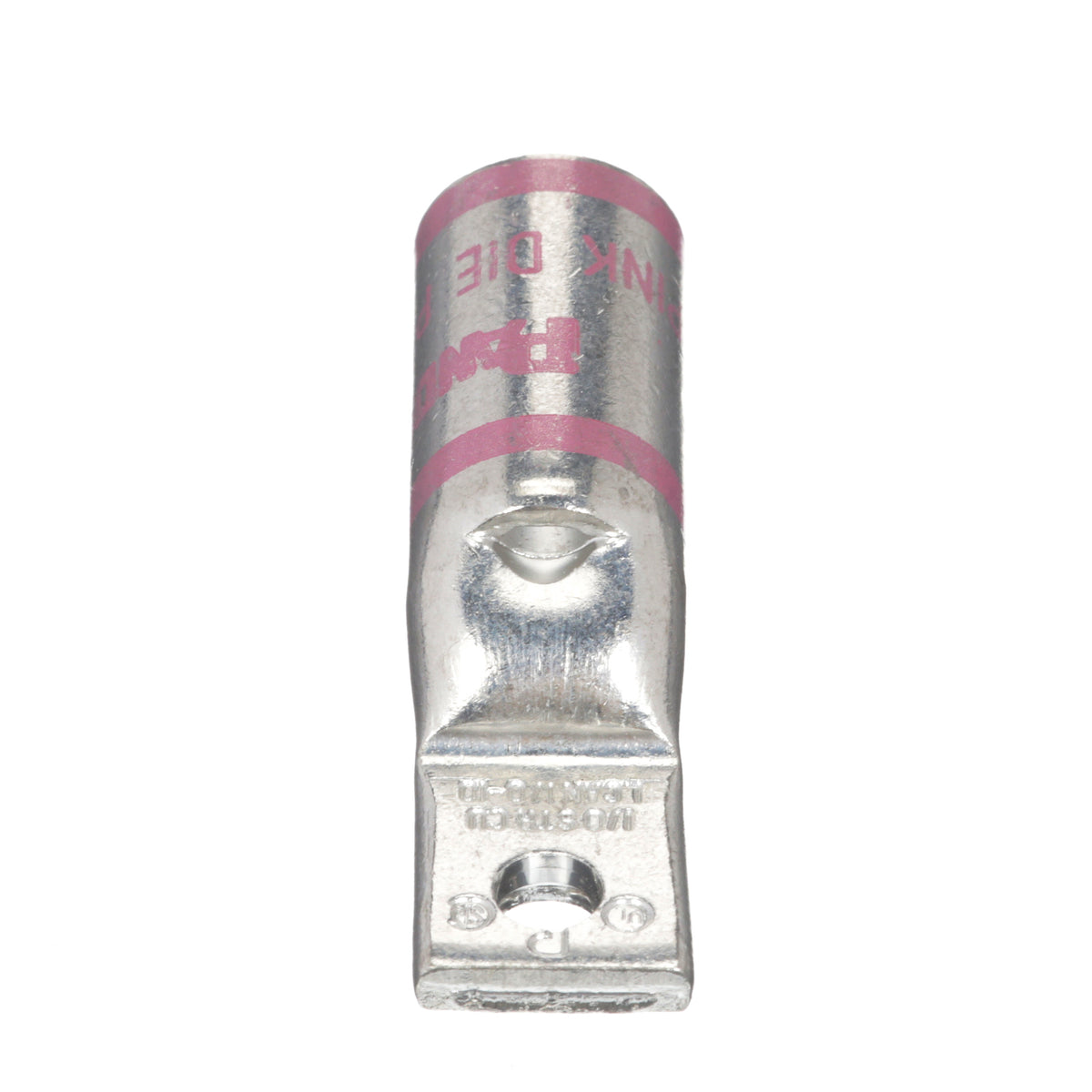

Panduit LCAN1/0-10-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344491
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAN1/0-10-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$9.45
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAN, Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, #10 Stud, Narrow Straight Tongue, 0.52 in W x 0.13 in THK Tongue, 1.78 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 90 deg C, 1 in Mounting Hole, Copper, Pink
Features + Benefits
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible copper conductors
Panduit LCAN1/0-10-X Key Specs
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.52 |
| Tongue Width (mm) | 13.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 1.78 |
| Overall Length (mm) | 45.2 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
Panduit LCAN1/0-10-X Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PLT1.5M-CO Product Page | Download and View |
| Part Drawings | PAN-TY Locking Cable Tie: SS-5540 Sheet 3 | Download and View |
