Brand: Panduit
|
SKU:
1048909

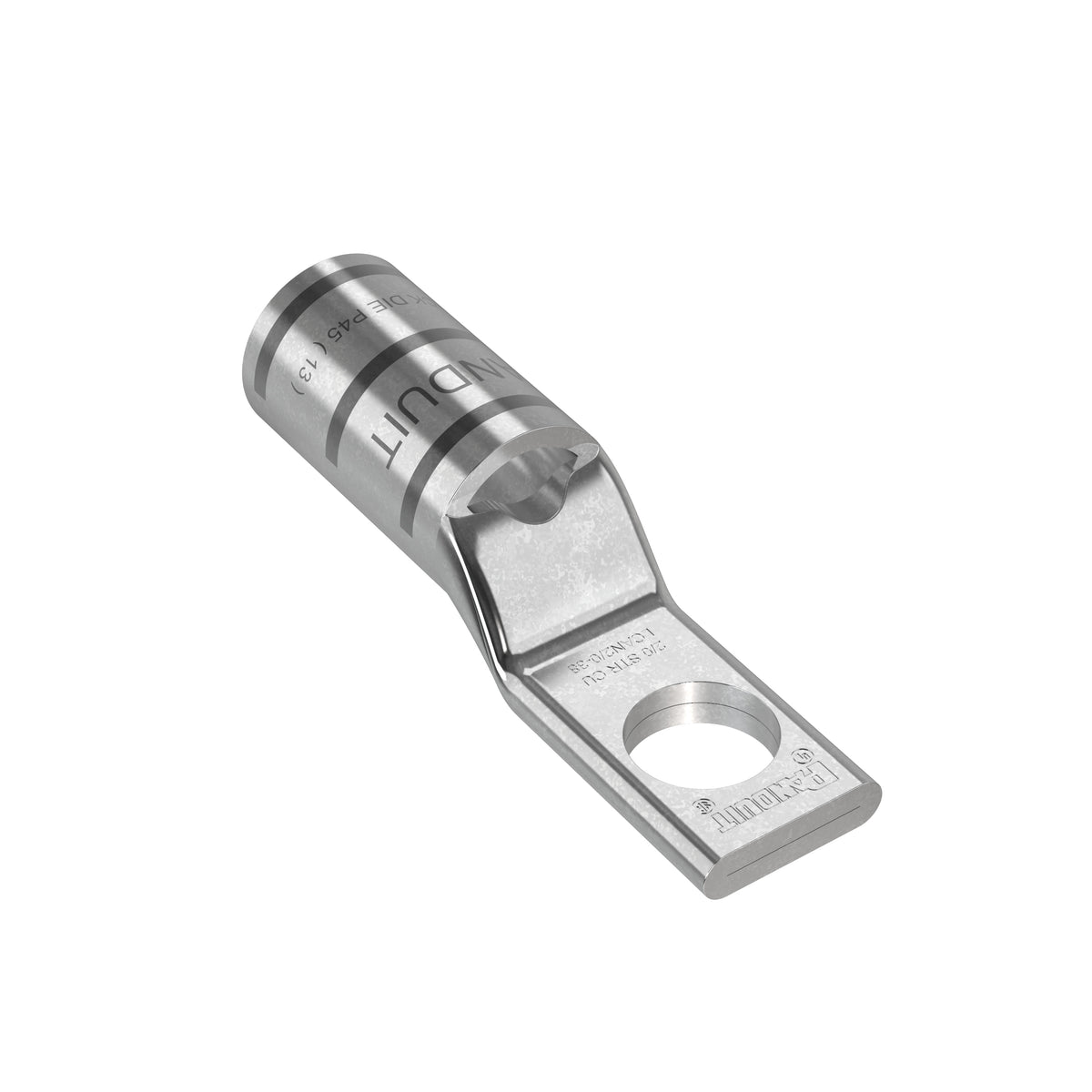

Panduit LCAN2/0-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344478
Regular price
$10.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAN2/0-38-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$10.35
Unit price
Description
Description
Panduit Compression Lug, 1-Hole, Series: LCAN, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.58 in W x 0.15 in THK Tongue, 2.17 in Overall Length, Standard/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 1-1/16 in L Wire Strip, Tin Plated, 90 deg C, 1-1/16 in Mounting Hole, Copper, Black
Features + Benefits
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCAN2/0-38-X Key Specs
| Inside Diameter (In.) | 0.45 |
| Inside Diameter (mm) | 11.43 |
| Outer Diameter (In.) | 0.58 |
| Outer Diameter (mm) | 14.73 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.58 |
| Tongue Width (mm) | 13.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.15 |
| Tongue Thickness (mm) | 3.8 |
| Overall Length (In.) | 2.17 |
| Overall Length (mm) | 55.1 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52165 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
Panduit LCAN2/0-38-X Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAN8-6-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAN2_0-38-Xrev01 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
| Application Guides | Best Seller Products for Industrial Construction, MRO and OEM Application Guide ELCB33 | Download and View |
| Videos | Getting Power to the Data Center Video | Download and View |
| Selection Guides | Power Connectors Product Selection Guide PCSG2--WW-ENG | Download and View |
