Description
Description

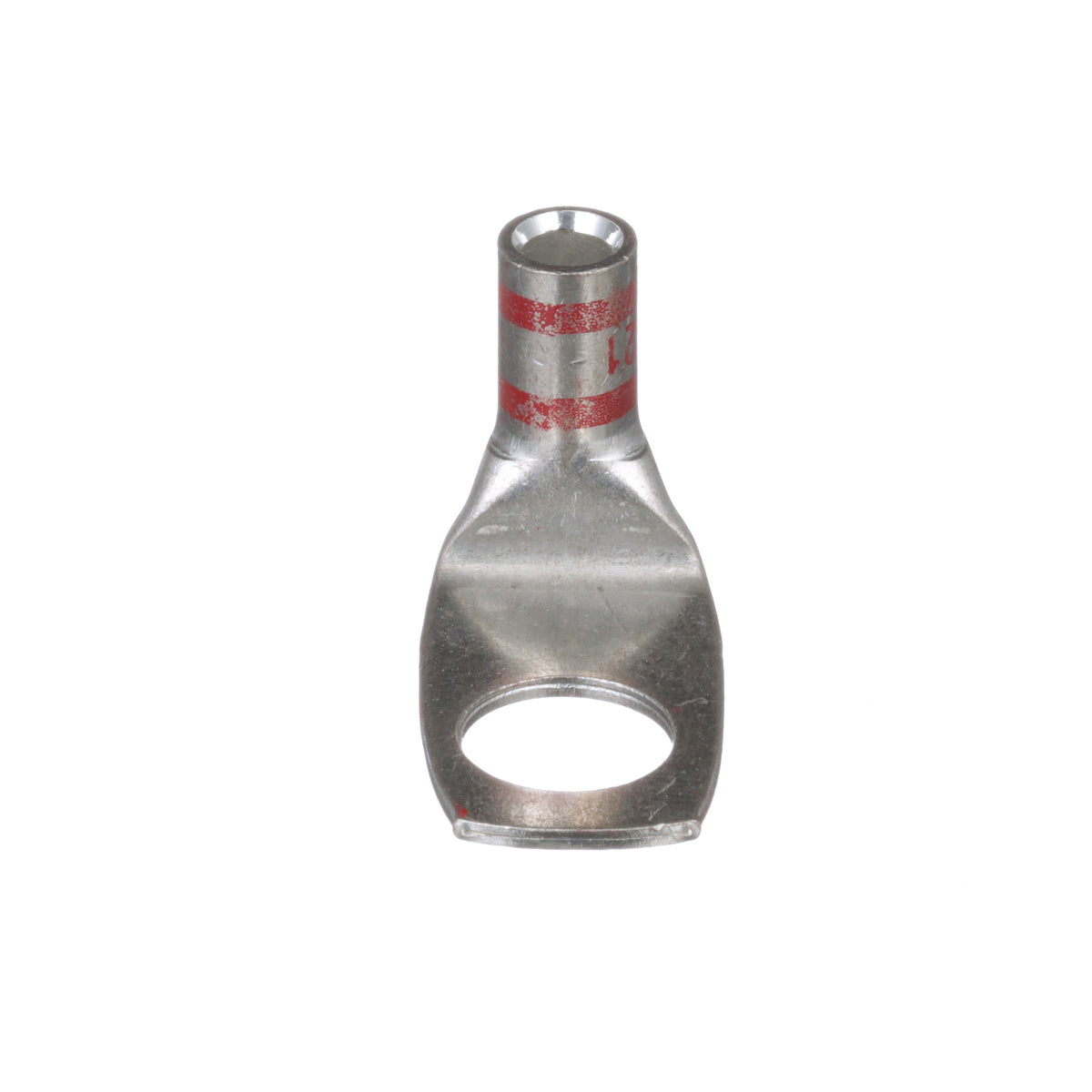

One-hole, short barrel with window lug, #8 AWG wire, 3/8 stud hole, 90° angle tongue.
Panduit LCAS8-38F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386883 Key Specs
| Copper Conductor Size (AWG) | #8 |
| Copper Conductor Size (kcmil) | 17 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.42 |
| Barrel Length (mm) | 10.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.21 |
| Overall Length (mm) | 30.7 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
Panduit LCAS8-38F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386883 Data Sheets
| Part Drawings | Part Drawing - PDF - LCAS8-38F-L | Download and View |
| Catalog Cut Sheets | Code Conductor, One-Hole, Short Barrel Window lug 90° | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAS8-38F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386883 Environmental Information
| Panduit's RoHS Statement | Download and View |
