Brand: Panduit
|
SKU:
PAN-LCB2/0-12

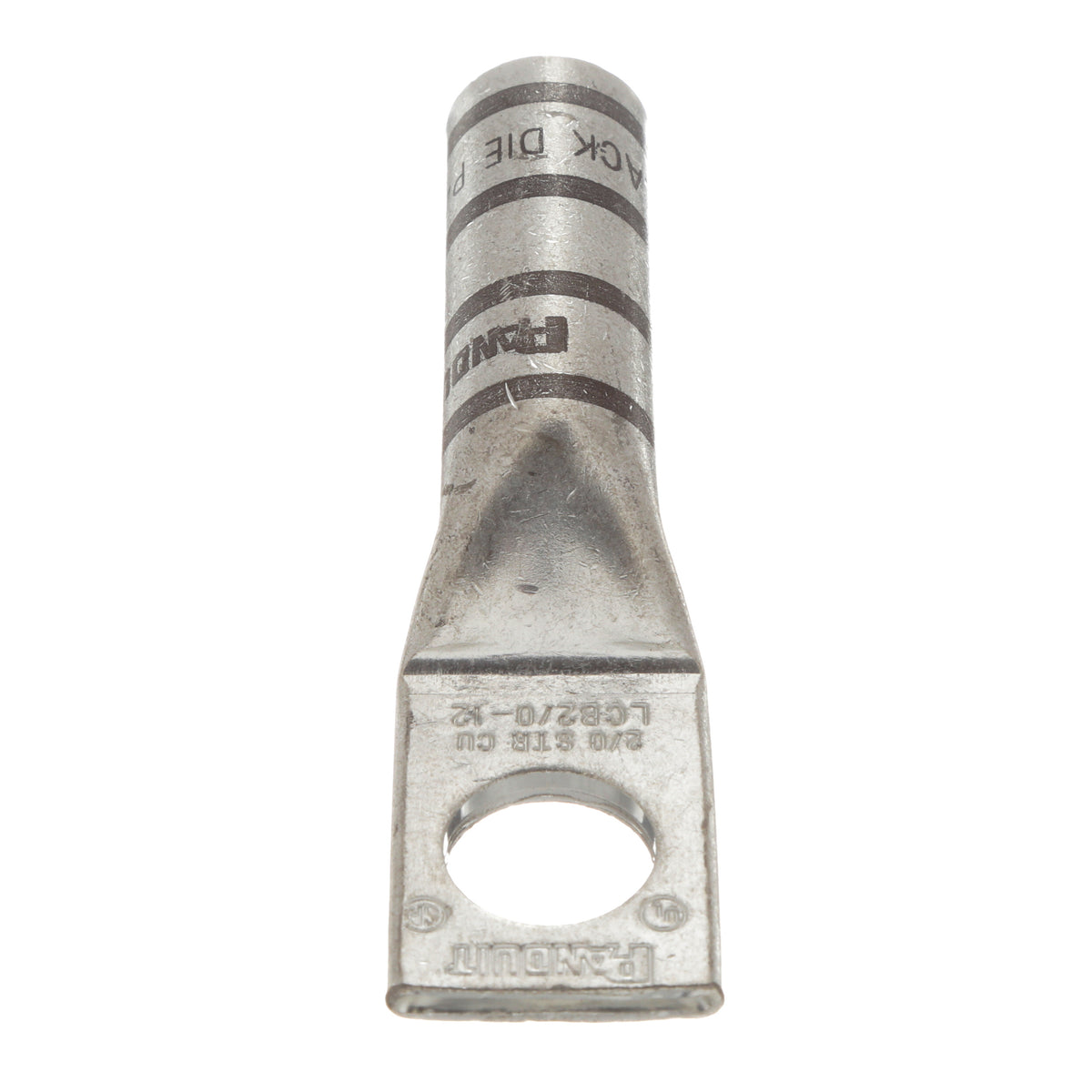

Panduit LCB2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338240
Regular price
$10.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCB2/0-12-X | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$10.35
Unit price
Brand: Panduit
|
SKU:
PAN-LCB2/0-12
Regular price
$10.35
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCB, Copper/Stranded Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 3.07 in Overall Length, Long without Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, 1-9/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 1.56 in Mounting Hole, Copper, Black
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCB2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338240 Key Specs
| Copper Conductor Size (AWG) | 2/0 |
| Copper Conductor Size (kcmil) | 133.1 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 3.07 |
| Overall Length (mm) | 78 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
Panduit LCB2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338240 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCBX8-10-L Product Page | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCB8-10-L Product Page! | Download and View |
| Part Drawings | Part Drawing - PDF - LCB2_0-12-X | Download and View |
Panduit LCB2/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338240 Environmental Information
| Panduit's RoHS Statement | Download and View |
