Brand: Panduit
|
SKU:
PAN-LCC3/0-38D

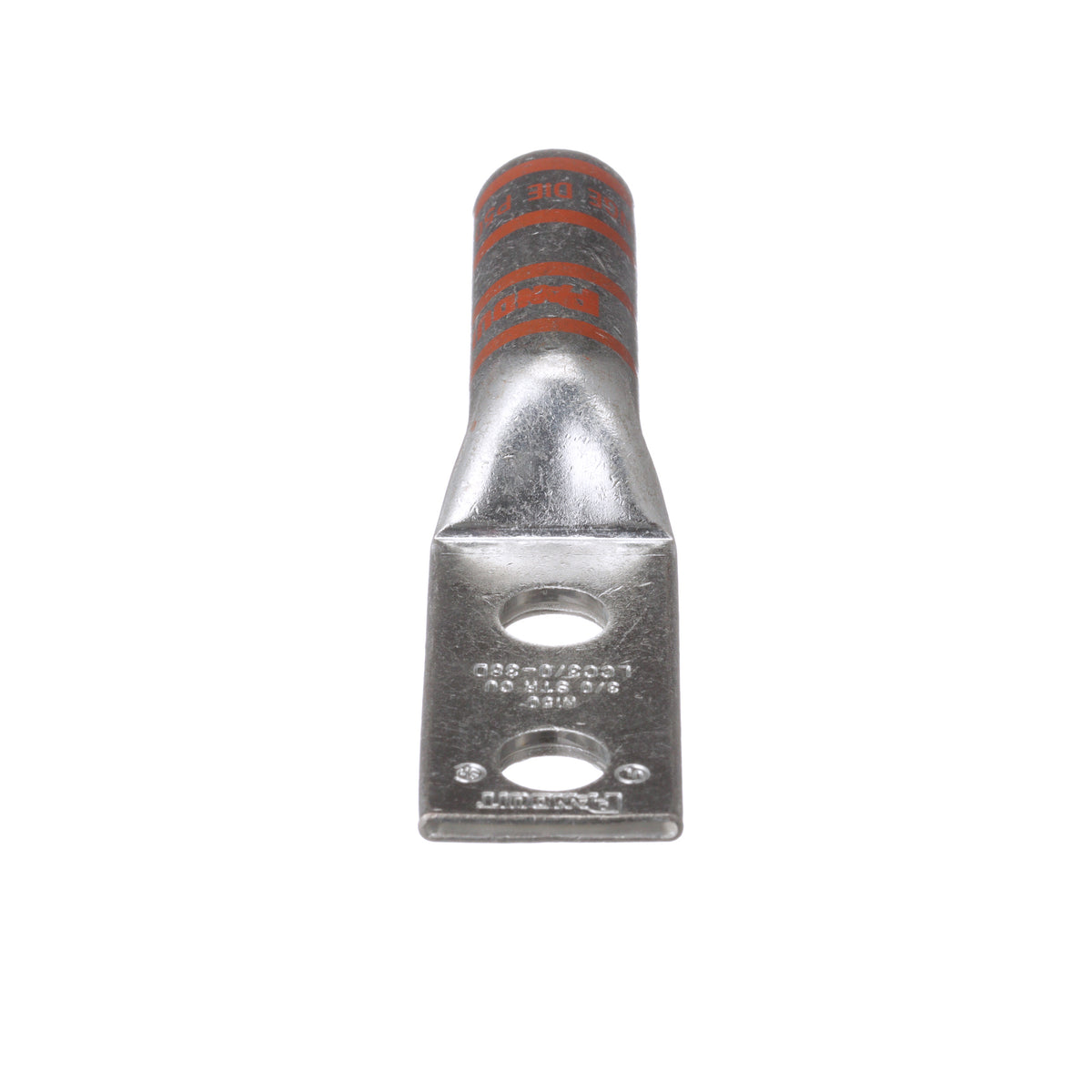

Panduit LCC3/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338281
Regular price
$14.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC3/0-38D-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$14.15
Unit price
Brand: Panduit
|
SKU:
PAN-LCC3/0-38D
Regular price
$14.15
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 3.87 in Overall Length, Long Barrel, 1-1/2 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1-9/16 in L Wire Strip, Tin Plated, 90 deg C, 1.56 in Mounting Hole, Copper, Orange
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC3/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338281 Key Specs
| Copper Conductor Size (AWG) | 3/0 |
| Copper Conductor Size (kcmil) | 168 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 3.87 |
| Overall Length (mm) | 98.3 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
Panduit LCC3/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338281 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
Panduit LCC3/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338281 Environmental Information
| Panduit's RoHS Statement | Download and View |
