Brand: Panduit
|
SKU:
885219

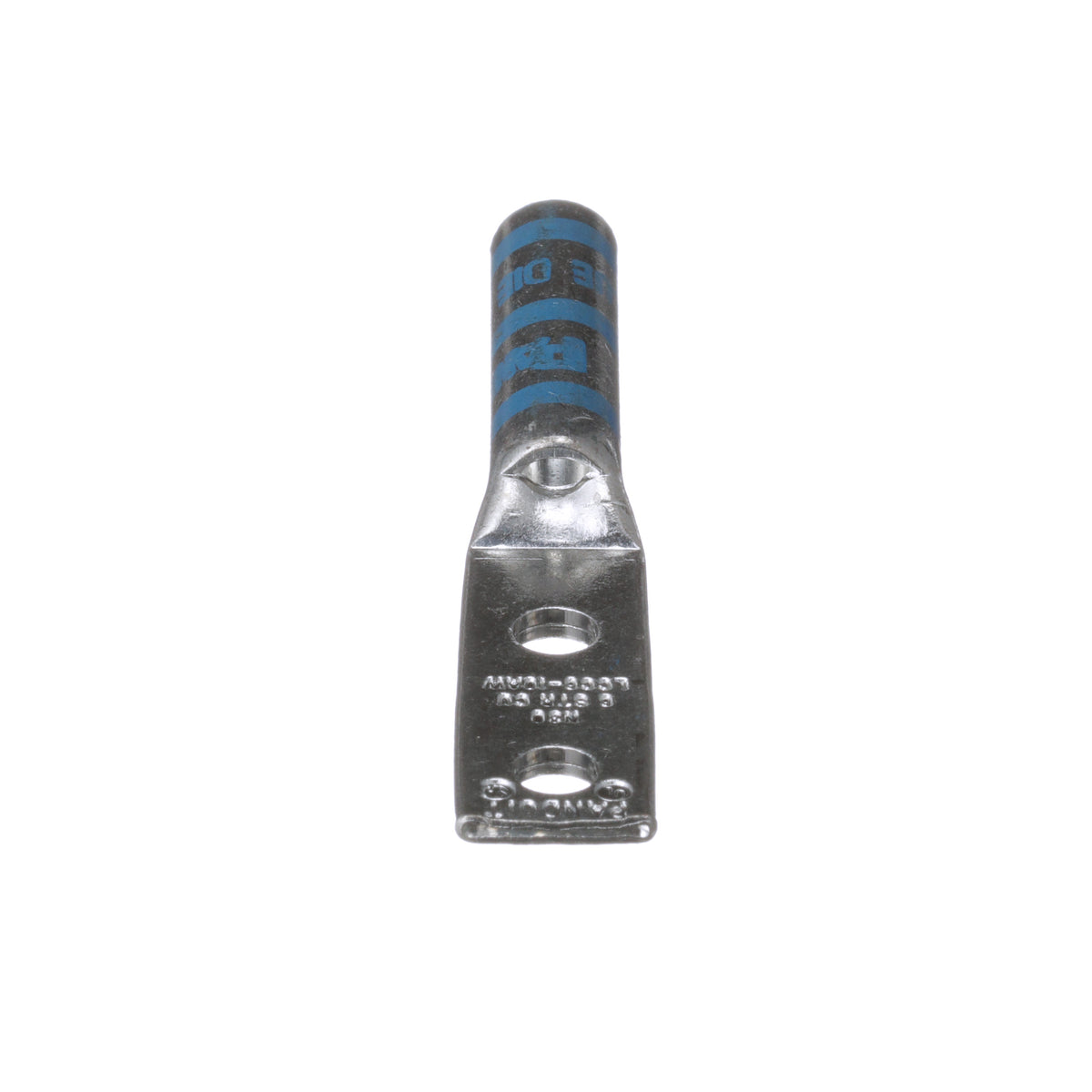

Panduit LCC6-10AW-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498379771
Regular price
$9.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCC6-10AW-L | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$9.07
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, Straight Tongue, 0.46 in W x 0.08 in THK Tongue, 2.4 in Overall Length, Long With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, 1-1/8 in L Wire Strip, 0.63 in Hole Spacing, 90 deg C, 1.13 in Mounting Hole, Copper, Blue
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with flexible copper conductors
Panduit LCC6-10AW-L Key Specs
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.46 |
| Tongue Width (mm) | 11.7 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.4 |
| Overall Length (mm) | 61 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
Panduit LCC6-10AW-L Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - FCM1-A-C14 Product Page | Download and View |
| Part Drawings | GB0239JE | Download and View |
| Application Guides | Adhesive Backed Mounts and Devices Application Guide WACB06 | Download and View |
