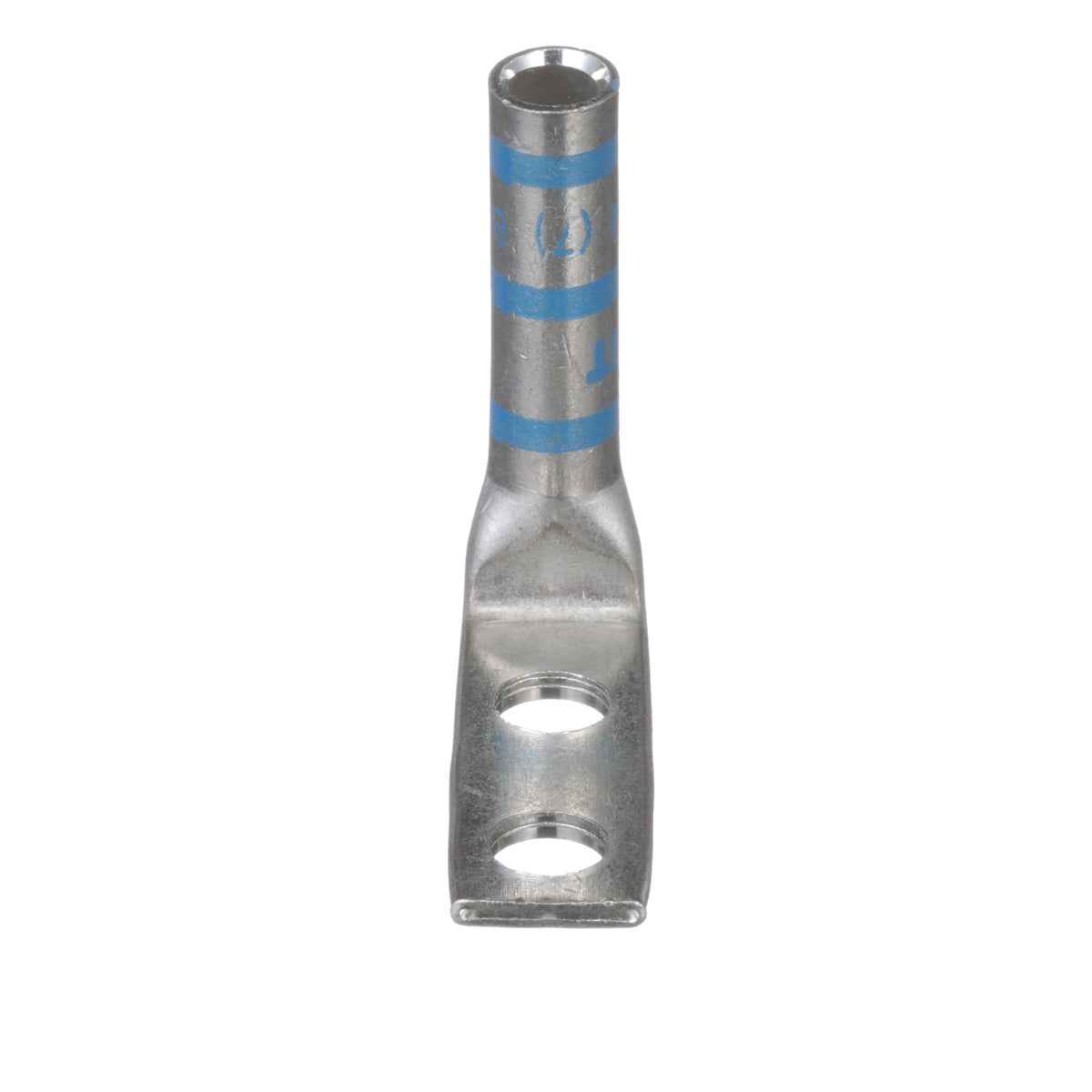

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCC-F, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 90 deg Long Tongue, 1.25 in L x 0.48 in W x 0.08 in THK Tongue, 1.66 in Overall Length, Long Without Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, 1-1/8 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 1-1/8 in Mounting Hole, Tin Plated Copper, Blue
Features + Benefits
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCC6-14AF-L Key Specs
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.66 |
| Overall Length (mm) | 42.2 |
| Color Code | Blue |
| Panduit Die Index Number | 24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 1.13 |
| Wire Strip Length (mm) | 28.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,NEBS level 3. |
Panduit LCC6-14AF-L Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC6-14AF-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
