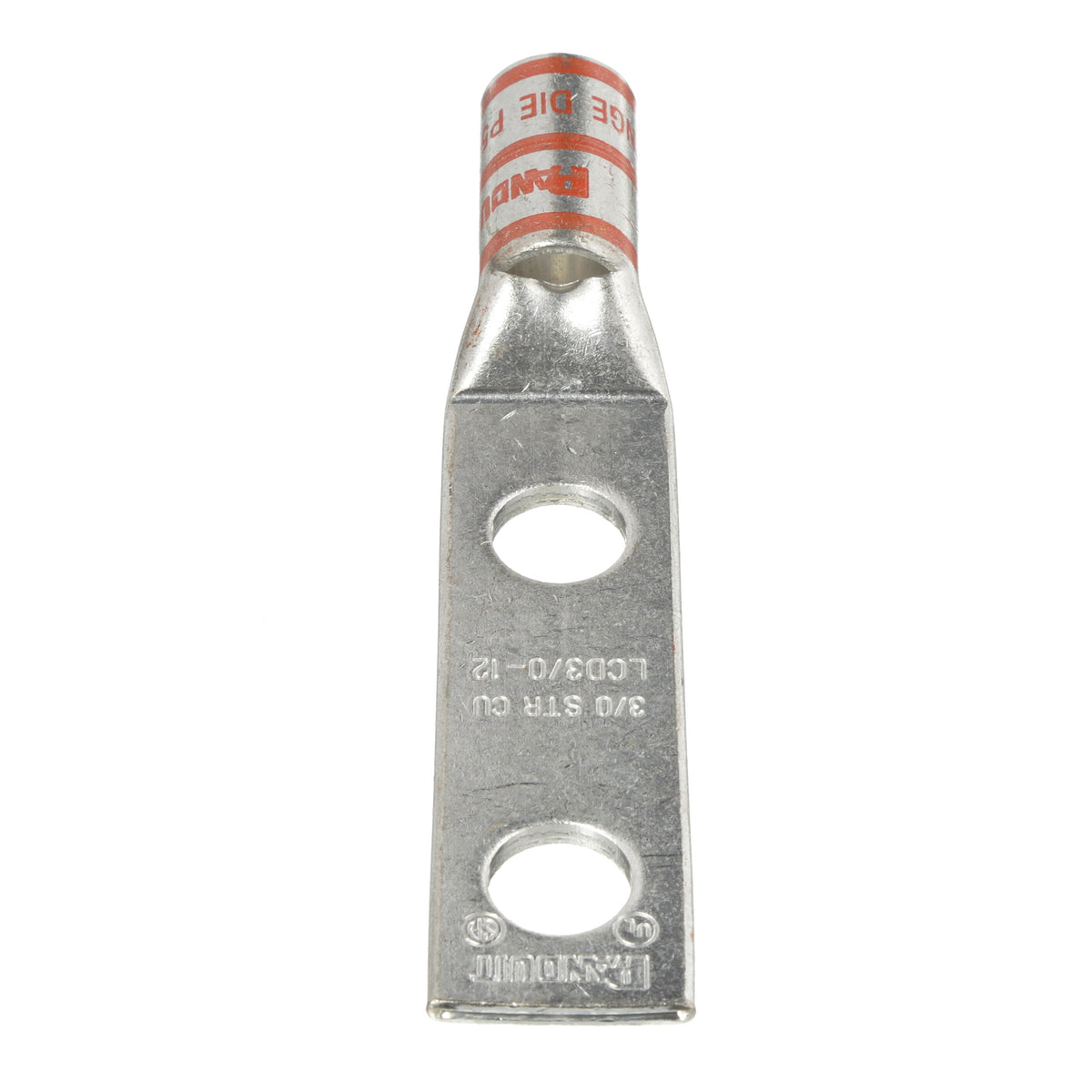

Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 4.49 in Overall Length, Standard/Inspection Window Barrel, 0.51 in ID x 0.64 in OD x 1.14 in L Barrel, 1-3/16 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 1.19 in Mounting Hole, Copper, Orange
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390094 Key Specs
| Copper Conductor Size (AWG) | 3/0 |
| Copper Conductor Size (kcmil) | 168 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.14 |
| Barrel Length (mm) | 29 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 4.49 |
| Overall Length (mm) | 114 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
Panduit LCD3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390094 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD3_0-12-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD3/0-12-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390094 Environmental Information
| Panduit's RoHS Statement | Download and View |
