Brand: Panduit
|
SKU:
924301

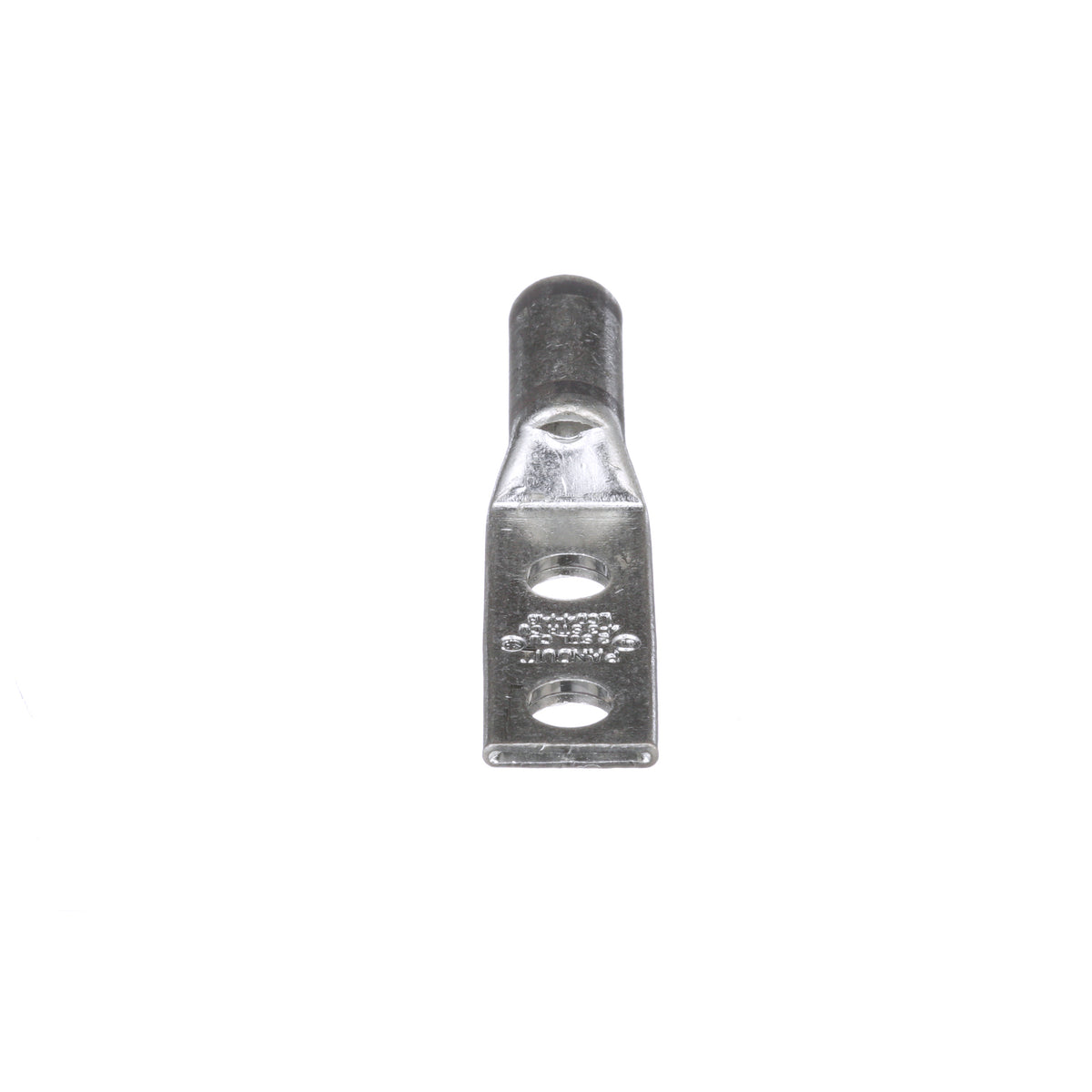

Panduit LCD4-14B-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338305
Regular price
$8.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD4-14B-L | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$8.59
Unit price
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCD, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2.38 in Overall Length, Standard/Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.81 in L Barrel, 3/4 in Stud Hole Spacing, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Gray
Features + Benefits
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD4-14B-L Key Specs
| Copper Conductor Size (AWG) | #4 |
| Copper Conductor Size (kcmil) | 42 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.38 |
| Overall Length (mm) | 60.5 |
| Color Code | Gray |
| Panduit Die Index Number | 29 |
Panduit LCD4-14B-L Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Catalog Cut Sheets | Insulated Ferrules - Twin Wire DIN End Sleeve | Download and View |
| Part Drawings | Ferrules With Sleeves Twin Wire (Din) Ftd: 2 Wires Inserted Into Ferrule Part Drawing A41669 | Download and View |
