Brand: Panduit
|
SKU:
LCD6-14AF-L
Panduit LCD6-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356766
Sale price
$5.99
Regular price
$8.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD6-14AF-L | Tin-Plated Copper Compression Connectors - Lu...
Sale price
$5.99
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
LCD6-14AF-L
Sale price
$5.99
Regular price
$8.90
Unit price
Shipping calculated at checkout.
Description
Description

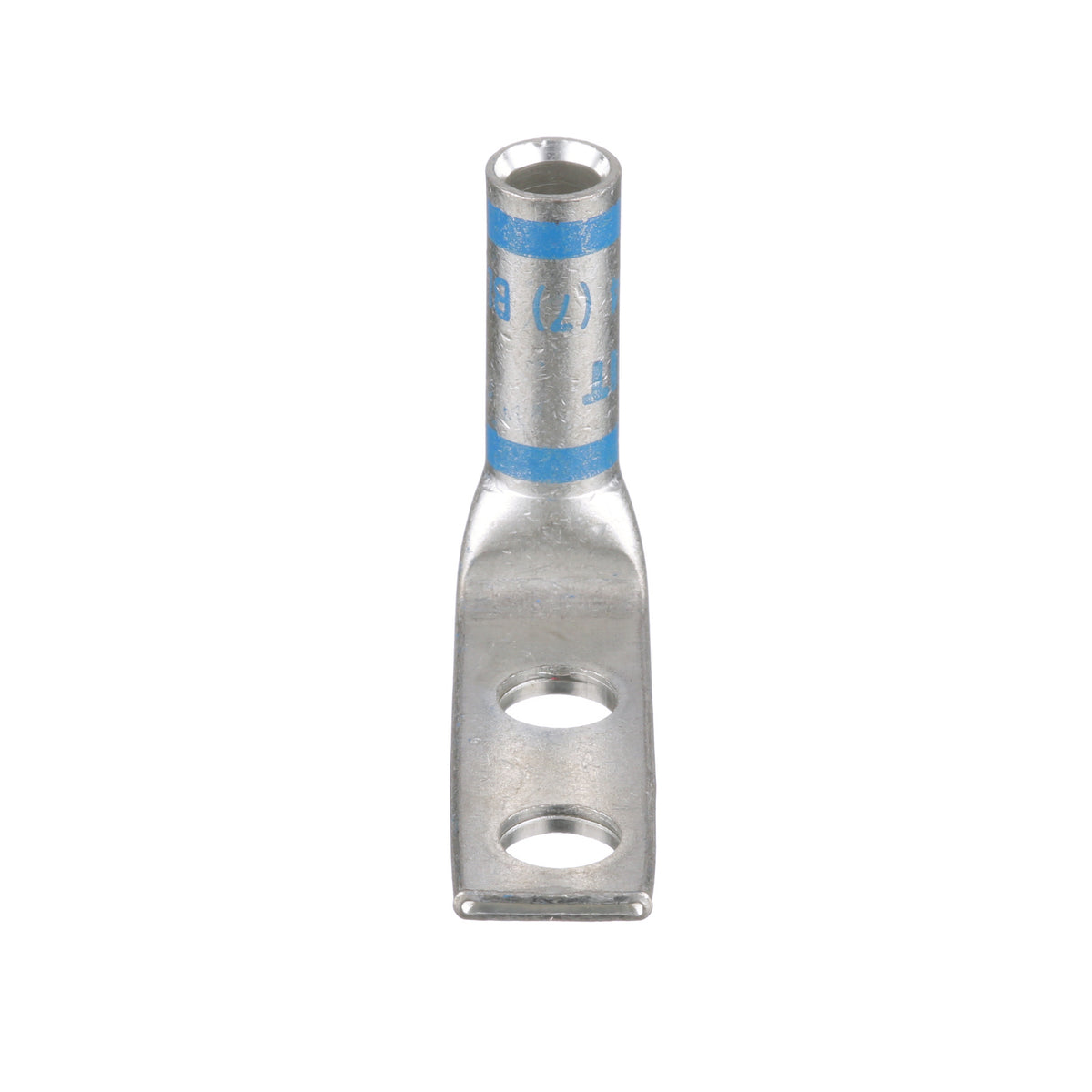

Panduit Compression Lug, 2-Hole, Series: LCD-F, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 90 deg/Standard Tongue, 1.25 in L x 0.48 in W x 0.08 in THK Tongue, 1.66 in Overall Length, Standard/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 0.63 in Stud Hole Spacing, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Blue
Features + Benefits
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD6-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356766 Key Specs
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.58 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.87 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 6 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Angle | 90° |
Panduit LCD6-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356766 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD6-14AF-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD6-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356766 Environmental Information
| Panduit's RoHS Statement | Download and View |
