Brand: Panduit
|
SKU:
806486
Panduit ML250-QY | Mechanical Connectors - Lugs | UPC - 07498359626
Regular price
$12.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ML250-QY | Mechanical Connectors - Lugs | UPC - 07498359626
Regular price
$12.43
Unit price
Description
Description

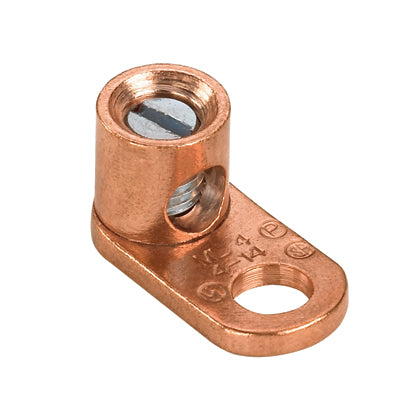

Panduit Mechanical Lug, Single Barrel, Series: ML Series, Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1 in L x 0.94 in W x 0.12 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 1/4 in Hex, 90 deg C, Cast Copper, 1.94 in L x 0.94 in W x 1.06 in H Dimensions
Features + Benefits
- Made from high strength electrolytic copper with steel screw to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel set screw provides high strength, durable electrical contact between conductor and connector
- Flat bottom allows for complete contact with mounting surface
- Compact design saves space
- Wire range taking, inspection window, high strength copper, compact design and flat for complete surface contact
Panduit ML250-QY Key Specs
| Note | ML250-QY replaces ML250-Q |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Number of Holes | 1 |
| Tongue Type | Straight Tongue |
| Tongue Length (In.) | 1 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Width (In.) | 0.94 |
| Tongue Width (mm) | 23.9 |
| Overall Height (In.) | 1.06 |
| Overall Height (mm) | 26.9 |
| Overall Length (In.) | 1.94 |
| Overall Length (mm) | 49.3 |
| UL Temperature Rating (°C) | 90 |
| Sub Brand | Pan-Lug |
| Part Features | Wire range taking,inspection window,high strength copper,compact design,flat for complete surface contact. |
Panduit ML250-QY Data Sheets
| Application Guides | FiberRunner Cable Routing System: SA-FRCB02 | Download and View |
| Installation Documents | Installation Instructions/Best Practices - RW251_00 | Download and View |
| Part Drawings | Part Drawings - PDF - FRSPJC212_00 | Download and View |
