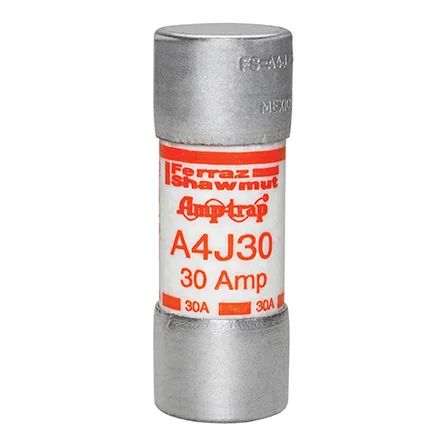

Mersen A4J30 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 30A F...
Description
Description
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capabi lit
Mersen - A4J30 - Features
- High current- limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label
- Ideal for use in capacitors, load centers, panelboards, switchboards, bus duct, feeder circuits, circuit breakers; lightning, heating, and general loads.
Specifications
Specifications
Mersen - A4J30 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A4J30 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A4J30 |
| Item Description | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 30A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A4J - Class J - Fast-Acting |
| EAN/UPC Code | 782001960186 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class J |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 20.7 mm |
| Product Length | 57.2 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.4627 kg |
| Sell Pack Width | 60.5 mm |
| Sell Pack Length | 108 mm |
| Sell Pack Height | 42.9 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.044 kg |
