Panduit FPE6X88MTG-X | Shielded Field Term Plug | UPC - 61305658015
Regular price
$245.11
Unit price
Description
Description

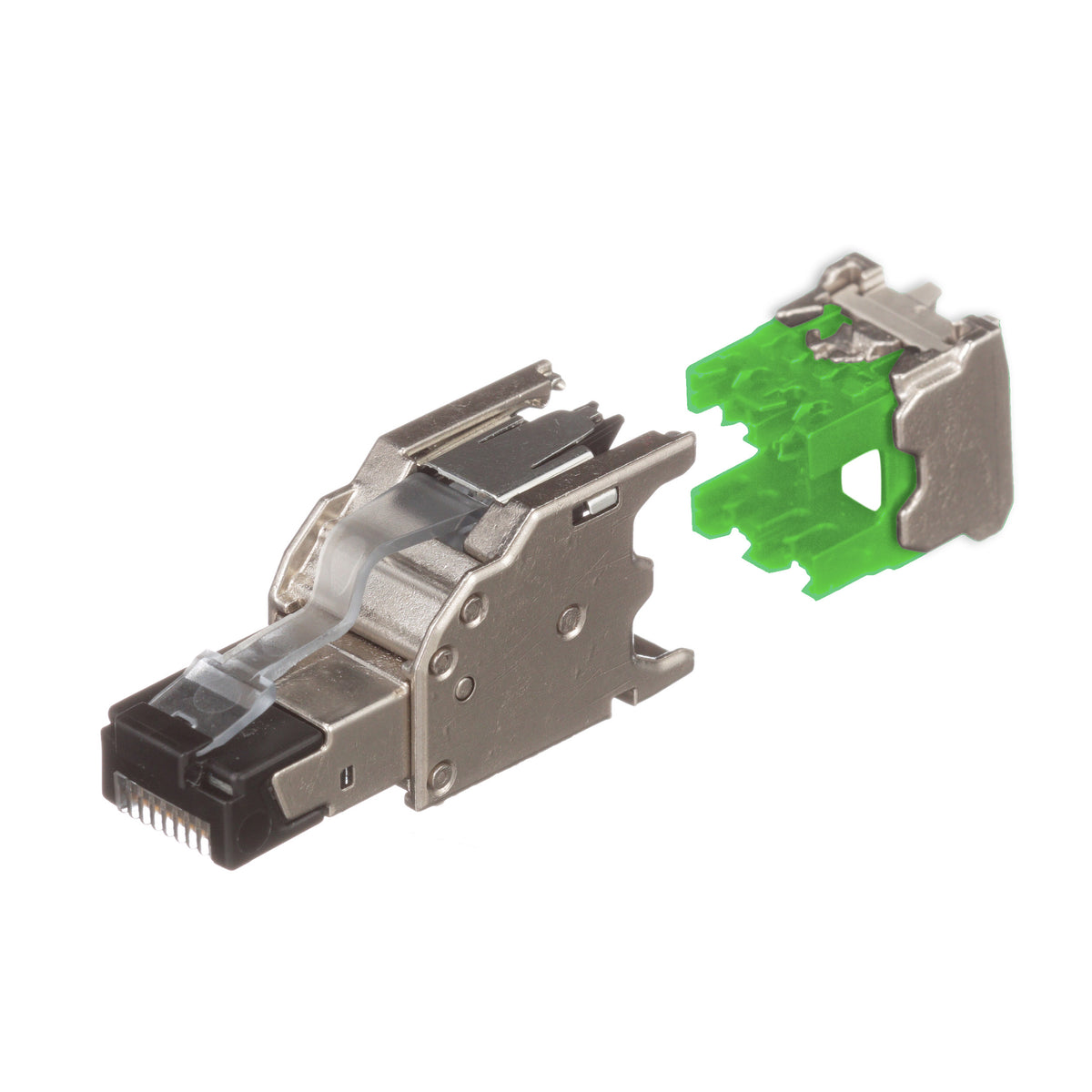

PROFINET Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 2-pair shielded twisted pair cable. Providing Category 5e performance the IndustrialNet PROFINET plug is terminates 2-pair, 22 AWG, 100 ohm shielded twisted pair cable compatible with PROFINET shielded systems.
Panduit FPE6X88MTG-X Key Specs
| Product Type | Shielded Field Term Plug |
| Performance Level | Category 5e |
| Connector Type | Field Terminable Plug |
| Body Material | Die Cast |
| Contact Material | Phosphor Bronze |
| Wiring Scheme | T568B |
| Shield Type | Shielded (STP) |
| Color | Silver |
| Standards Met | Exceeds ANSI/TIA 568.2-D Category 5e and ISO 11801 Class EA hannel performance requirements with up to two field term plugs in channel. |
| IP Rating | IP20 |
| Sub Brand | IndustrialNet |
| Part Features | Designed specifically for 2-pair, 22AWG PROFINET cable applications ; TG-style termination allows for easy termination, up to 10 re-terminations |
Panduit FPE6X88MTG-X Data Sheets
| Part Drawings | TX6A Profinet Category 5e, 2-pair STP Field Terminable Plug | Download and View |
| Installation Documents | Profinet 2-Pair Shielded Field Term - PN637 | Download and View |
| Part Drawings | Straight (Horizontal) Wire Cap Assembly for Profinet 2-pair Field Terminable STP RJ45 Plug Assembly | Download and View |
| Specification Sheets | IndustrialNet PROFINET Shielded Field Term RJ45 Plug | Download and View |
