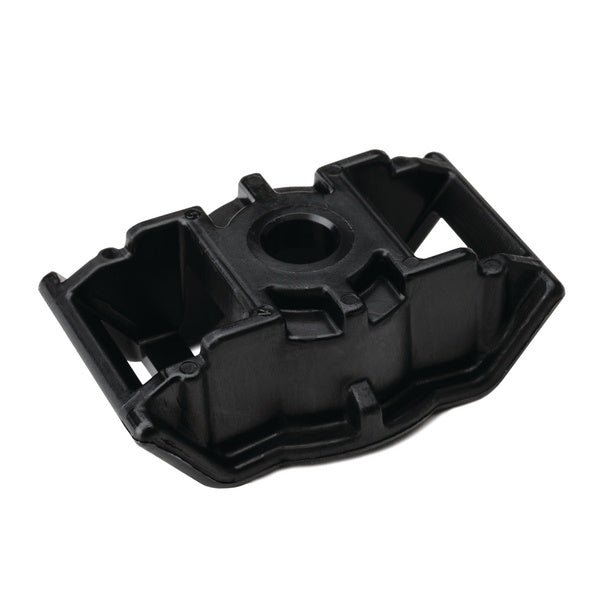

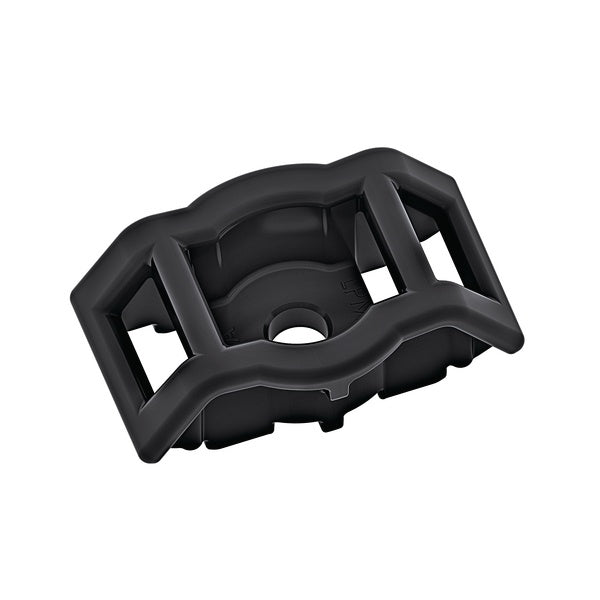

HellermannTyton 151-01122 | Low Profile Screw Mount, 1.8" X 0.98", 0.25" Hole, Pa66Hirhsuv, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01122 | Low Profile Screw Mount, 1.8" X 0....
Description
Description
Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width.
Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01122 - Features
- Separates bundles to help prevent chafing and wear.
- Single bundles can be mounted on top of the mount, or two bundles can be separated using the two side saddles; giving the mount versatility.
- Low profile design allows mount to be placed in areas where space is limited.
- Suitable for applications with minimal space.
- CTAM has 4-way entry design for use in line or at 90° angle to cable run.
- CTAM mounts are available in different sizes and materials.
Specifications
Specifications
HellermannTyton - 151-01122 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Multiple Bundles
HellermannTyton - 151-01122 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .250 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-01122 - Base Data
| Article Number | 151-01122 |
|---|---|
| Type | LPM25 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Low Profile Screw Mount, 1.8" x 0.98", 0.25" Hole, PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | LPM25-PA66HIRHSUV-BK |
HellermannTyton - 151-01122 - Product Dimensions
| Length L (Imperial) | 1.8 |
|---|---|
| Length L (Metric) | 45.1 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.98 |
| Width W (Metric) | 24.9 |
| Cable Ties | T50 - T250 |

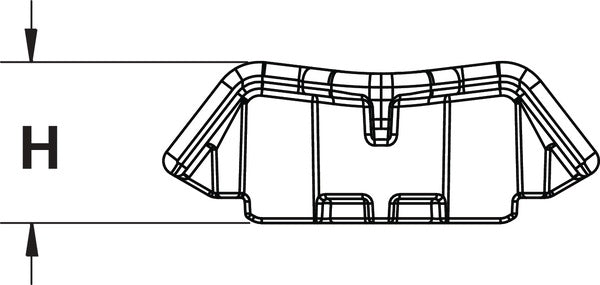

| Height H (Imperial) | 0.66 |
| Height H (Metric) | 16.7 |
| Cable Tie Width Max (Imperial) | 0.53 |
| Cable Tie Width Max (Metric) | 13.5 |
| Mounting Hole Diameter D (Imperial) | 0.25 |
| Mounting Hole Diameter D (Metric) | 6.7 mm |
| Mounting Hole Diameter D Max (Metric) | 6.7 |
HellermannTyton - 151-01122 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01122 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
