HellermannTyton 151-02104 | High Torque Double Mnt, 4-Way, Mounting...
Description
Description

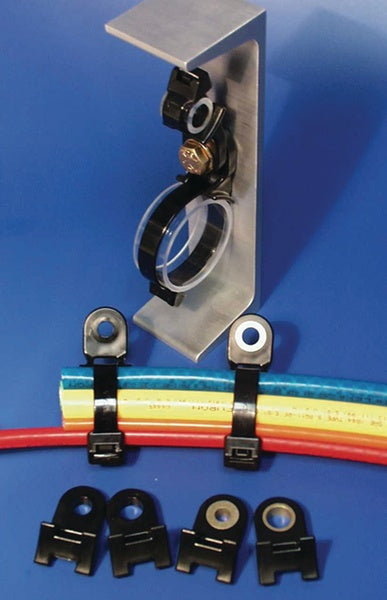

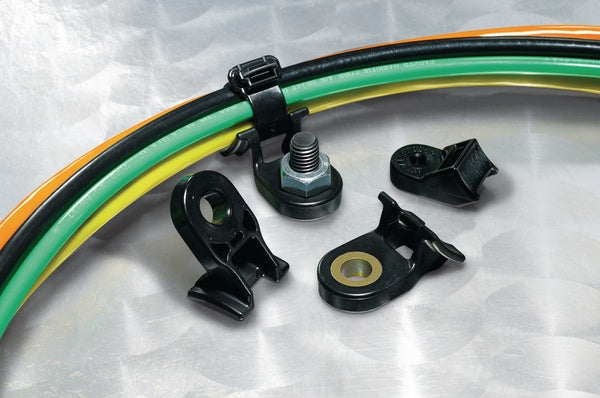

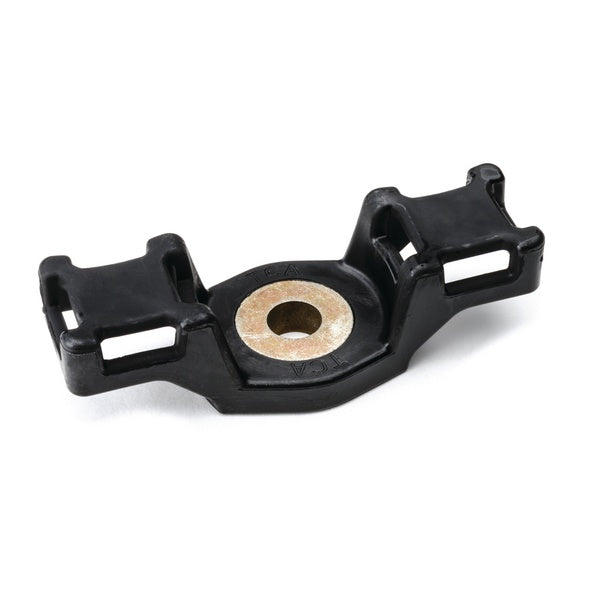

High Torque Double Mounts are designed for use with power assisted impact wrenches and are molded with a metal bushing to withstand the forces required to tighten grade 8 bolts. Mounts are designed for routing multiple bundles with HellermannTyton heav y duty T250, T255, and wide strap cable ties to harness wires and hoses. The bundle is secured directly over the mounting fastener. The arched saddle surface allows for a broad surface contact with the bundle, minimizing pinching and crushing of the bu ndles. Mounts accept all standard cable ties up to .5" wide.
High Torque Double Mounts are designed for use with power assisted impact wrenches and are molded with a metal bushing to withstand the forces required to tighten grade 8 bolts. Mounts are designed for routing multiple bundles with HellermannTyton heavy duty T250, T255, and wide strap cable ties to harness wires and hoses. The bundle is secured directly over the mounting fastener. The arched saddle surface allows for a broad surface contact with the bundle, minimizing pinching and crushing of the bundles. Mounts accept all standard cable ties up to .5" wide.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02104 - Features
- Arched H-profile surface allows for broad surface contact with the bundle, minimizing pinching and crushing of the bundles.
- High torque metal bushing allows for strength in heavy duty applications.
- These mounts contain a small tab inside the mounting hole to temporarily engage the threads which allows assemblers to pre-install the mount on a stud with a washer and nut.
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
Specifications
Specifications
HellermannTyton - 151-02104 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Multiple Bundles
HellermannTyton - 151-02104 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .375 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-02104 - Base Data
| Article Number | 151-02104 |
|---|---|
| Type | HDM375BDM4W-R |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | High Torque Double Mnt, 4-Way, Mounting Hole .375", Max Torque 114.0 lb - ft, PA66HIRHSUV, Black, 100/pkg |
| Global Part Name | HDM375BDM4W-R-PA66HIRHSUV-BK |

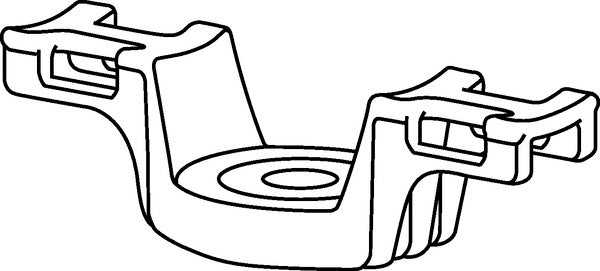

HellermannTyton - 151-02104 - Product Dimensions
| Length L (Imperial) | 3.5 |
|---|---|
| Length L (Metric) | 89 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 1.4 |
| Width W (Metric) | 34.1 |
| Cable Ties | T50 - T250 |
| Height H (Imperial) | 0.99 |
| Height H (Metric) | 25.2 |
| Cable Tie Width Max (Imperial) | 0.5 |
| Cable Tie Width Max (Metric) | 12.7 |
| Mounting Hole Diameter D (Imperial) | 0.405 |
| Mounting Hole Diameter D (Metric) | 10.29 mm |
| Mounting Hole Diameter D Max (Metric) | 10.29 |
| Stud Diameter (Metric) | 10.3 mm |
| Stud Diamater (Imperial) | 0.41 |
| Mounting Hole Centers (Imperial) | 0.405 |
HellermannTyton - 151-02104 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02104 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Maximum Torque (kgf-cm) | 1576 |
| Maximum Torque (lbf-ft) | 114 |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
