HellermannTyton MSBT1200HIRHSH1 | Saddle Mount For Button Head Tie,...
Description
Description

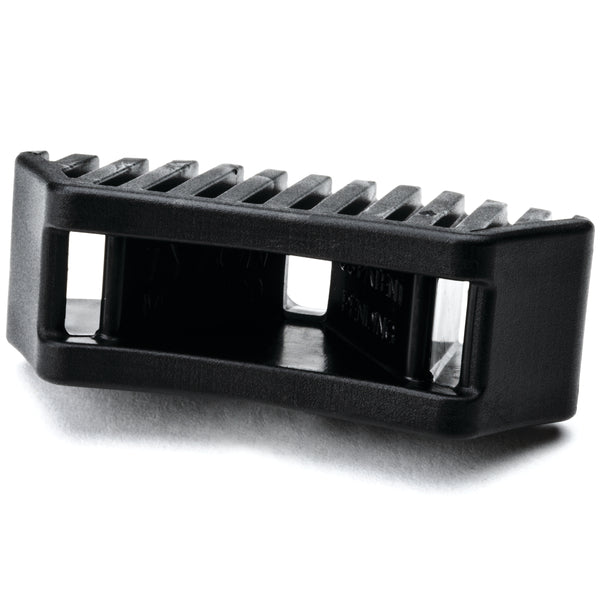

HellermannTyton’s saddle mounts are designed to be used with button head ties, the saddle mount stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount also allows the flow-t hrough of salt, dirt, and other impurities from the road which prevent unwanted build-up on hoses and harnesses. The tie is snapped into the mount which allows the strap and tie assembly to be pre-installed on the frame rail or panel. The mount can sec ure three separate bundles, providing parallel spacing between the frame rail and adjacent bundles. The saddle mount is manufactured with a pilot busing which prevents the cable tie from chafing against the burr edge of the mounting hole.
HellermannTyton's saddle mounts are designed to be used with button head ties, the saddle mount stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount also allows the flow-through of salt, dirt, and other impurities from the road which prevent unwanted build-up on hoses and harnesses. The tie is snapped into the mount which allows the strap and tie assembly to be pre-installed on the frame rail or panel. The mount can secure three separate bundles, providing parallel spacing between the frame rail and adjacent bundles. The saddle mount is manufactured with a pilot busing which prevents the cable tie from chafing against the burr edge of the mounting hole.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - MSBT1200HIRHSH1 - Features
- Secures up to three bundles for multiple routing.
- Provides parallel spacing between frame rail and adjacent bundles to reduce wear.
- Manufactured with a pilot bushing which prevent the cable tie from chafing against the burr edge of the mounting hole.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.
Specifications
Specifications
HellermannTyton - MSBT1200HIRHSH1 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Multiple Bundles
HellermannTyton - MSBT1200HIRHSH1 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - MSBT1200HIRHSH1 - Base Data
| Article Number | 151-29301 |
|---|---|
| Type | MSBT120 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Saddle Mount For Button Head Tie, 0.44 - 0.82" Mounting Hole, PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | MSBT120-PA66HIRHS-BK |
HellermannTyton - MSBT1200HIRHSH1 - Product Dimensions
| Length L (Imperial) | 1.9 |
|---|---|
| Length L (Metric) | 48.3 |
| Width W (Imperial) | 0.65 |
| Width W (Metric) | 16.5 |
| Bundle Diameter 1st Loop Max (Imperial) | 6 |
| Bundle Diameter 1st Loop Max (Metric) | 152.4 |
| Bundle Diameter 2nd Loop Max (Imperial) | 1 |
| Bundle Diameter 2nd Loop Max (Metric) | 25.4 |
| Cable Ties | T50 - T250 |
| Height H (Imperial) | 0.8 |
| Height H (Metric) | 20.6 |
| Panel Thickness Min (Imperial) | 0.161 |
| Panel Thickness Max (Imperial) | 0.752 |
| Panel Thickness Min (Metric) | 4.1 |
| Panel Thickness Max (Metric) | 19.1 |
| Mounting Hole Diameter D (Imperial) | 0.44 - 0.82 |
| Mounting Hole Diameter D (Metric) | 11.2 - 20.8 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.44 |
| Mounting Hole Diameter D Max (Imperial) | 0.82 |
| Mounting Hole Diameter D Max (Metric) | 20.8 |
HellermannTyton - MSBT1200HIRHSH1 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - MSBT1200HIRHSH1 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
