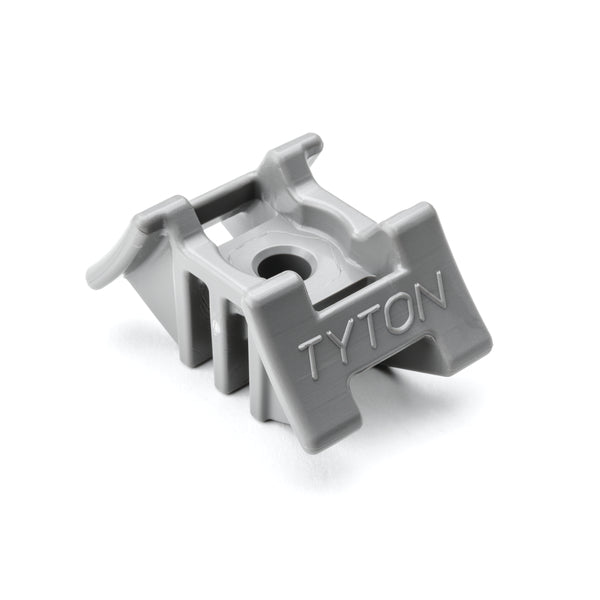

HellermannTyton S2CM258HIRHSH1 | 2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, Pa66Hirhs, Gray, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton S2CM258HIRHSH1 | 2-Way Saddle Mount, 3.5" Max ...
Description
Description
HellermannTyton’s saddle mount can be installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the H-profile on the saddle mount pro vides a tight circumferential loop on large and small bundles. Cable ties up to 1/2" wide are used to secure the bundles.
HellermannTyton's saddle mount can be installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the H-profile on the saddle mount provides a tight circumferential loop on large and small bundles. Cable ties up to 1/2" wide are used to secure the bundles.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - S2CM258HIRHSH1 - Features
- Separates bundles from wear and chafing, providing additional longevity.
- Hexagonal retention feature (S2HM25) captures a bolt or nut requiring tool access from the back side only.
- A socket counterbore allows securing with a socket wrench from the top side for use with a weld stud or bolt (S2CM25.)
- Made from impact modified, heat stabilized, UV resistant material making it ideal for heavy duty applications.
- Installation and removal can be five times faster
- than conventional clamps
- .
- Heat stabilized material is suitable for high temperature applications.
- Completely reusable
- .
- Will not rust or corrode
- .
- Safety engineered.
- No protruding band or cluster.
- Can be installed with hose in place
- .
- One-hand installation for tight places.
Specifications
Specifications
HellermannTyton - S2CM258HIRHSH1 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Multiple Bundles
HellermannTyton - S2CM258HIRHSH1 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - S2CM258HIRHSH1 - Base Data
| Article Number | 151-29400 |
|---|---|
| Type | S2CM25 |
| Color | Gray (GY) |
| Quantity Per | bag |
| Short Description | 2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, PA66HIRHS, Gray, 500/pkg |
| Global Part Name | S2CM25-PA66HIRHS-GY |
HellermannTyton - S2CM258HIRHSH1 - Product Dimensions
| Length L (Imperial) | 1.8 |
|---|---|
| Length L (Metric) | 45 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 1.2 |
| Width W (Metric) | 30 |
| Bundle Diameter Max (Imperial) | 3.5 |
| Bundle Diameter Max (Metric) | 89 |
| Cable Ties | T50 - T250 |
| Height H (Imperial) | 0.9 |
| Height H (Metric) | 23 |
| Cable Tie Width Max (Imperial) | 0.53 |
| Cable Tie Width Max (Metric) | 13.5 |
| Mounting Hole Diameter D (Imperial) | 0.24 |
| Mounting Hole Diameter D (Metric) | 6.0 mm6.35 mm (hexagonal) |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Metric) | 6 |
| Stud Diameter (Metric) | 6.35 mm |
| Stud Diamater (Imperial) | 0.25 |
HellermannTyton - S2CM258HIRHSH1 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - S2CM258HIRHSH1 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
