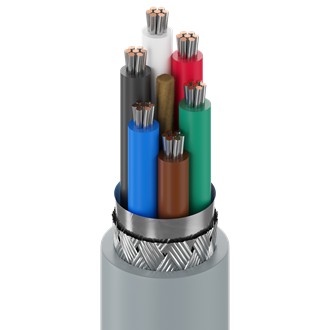

Belden 9942 0601000 | Computer EIA RS-232 Cable, #22-6C, SR-PVC, O/...
Description
Description
Belden’s Classic Line includes a select number of high quality, high reliability Multi-conductor and Paired Cables. These known performers meet or exceed UL standards and have been used worldwide for decades.
Belden classic products are manufactured in a wide variety of gauge (AWG) sizes, insulation materials, shielding configurations, and jacketing materials, including Plenum and High-temperature versions. These Multi-conductor and paired products offer best-in-class performance and reliability in many different systems.
Belden - 9942 0601000 - Features
- Unsurpassed quality and reliability
- Robust designs that meet or exceed UL standards
- Proven performance in installations worldwide
- Broad range of AWG sizes, shielding options, conductor and pair counts
- Convenient put-up options
- Polyolefin insulations provide lower capacitance performance when compared to cables with PVC insulations
- Tefzel, TFE and FEP insulation and jacket constructions offer higher temperature ratings
- Global availability through a network of Belden distributors
Specifications
Specifications
Belden - 9942 0601000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 6 |
| Stranding | 7x30 |
| UL Temperature | 60°C (UL CMG);80°C (UL AWM 2464) |
| Stationary Min. | 2.9 in (74 mm) |
| Installation Min. | 2.9 in (74 mm) |
| Max. Pull Tension | 74.5 lbs (33.8 kg) |
| Bulk Cable Weight | 39 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
| Conductor Count | 6 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | SrPVC-Semi-Rigid Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Nec Cmg |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Foil &Amp Braid |
| UNSPC Code | 26121613 |
