Brand: Belden | SKU: B5302F1-1000

Belden 5302F1 0101000 | Multi-Conductor - Water-Blocked For Use In Underground Ducts 4 18 Awg PVC FS PVC Black

$513.74

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 5302F1 0101000 | Multi-Conductor - Water-Blocked For Use In Underground Ducts 4 18 Awg PVC FS PVC Black

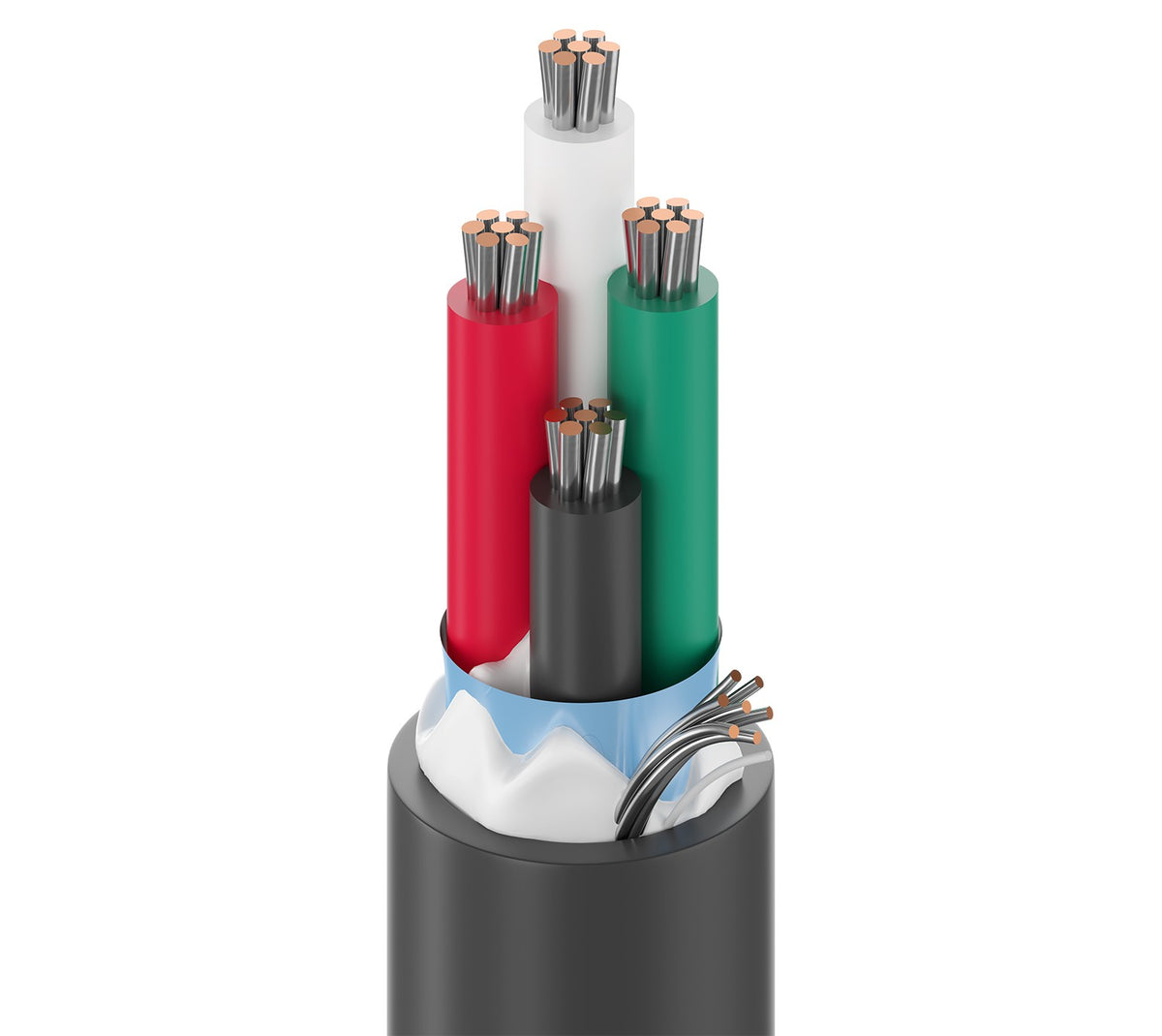

18 AWG stranded (7x26) tinned copper conductors, PVC insulation, water-blocking tape, overall aluminum foil-polyester tape shield (100% coverage), drain wire, overall PVC jacket.

Specifications

Belden - 5302F1 0101000 - Applications

Security System
Intercom/PA
Audio/Speaker
Power-Limited Controls
Noisy & Wet Location
Below-Grade Duct

Belden - 5302F1 0101000 - Specifications

Conductor Count	4 Conductors
Conductor Material	Tinned Copper
Conductor Size	18 Awg (American Wire Gauge)
Conductor Type	Stranded Conductor
Fire Rating	General Purpose
Insulation Material	PVC-Polyvinyl Chloride
Jacket Material	Pvc-Polyvinyl Chloride
NEC Rating	Ul Listed Art 760 - Fire Alarm
Screen/Shield	Yes
Screen/Shield Type	Foil Shielded - Alum/Mylar
Shield Construction	Overall Shield & Drain
UNSPSC Code	26121524
Size	18 AWG
Stranding	7x26
UL Temperature	105°C
Operating Temperature	-30°C to +105°C
Stationary Min.	2.6 in (66 mm)
Installation Min.	2.6 in (66 mm)
Bulk Cable Weight	45 lbs/1000ft
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4, IEEE 1202
Putup Type	Reel
Length	1,000 ft

Documents and Downloads

Belden 5302F1 0101000 Data Sheet
