Brand: Belden
|
SKU:
B9534-DY0
Belden 9534 0605000 | Computer EIA RS-232 Cable, #24-4C, SR-PVC, O/A Foil, PVC Jacket, CMG
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9534 0605000 | Computer EIA RS-232 Cable, #24-4C, SR-PVC, O/...
Regular price
$3.00
Unit price
Description
Description

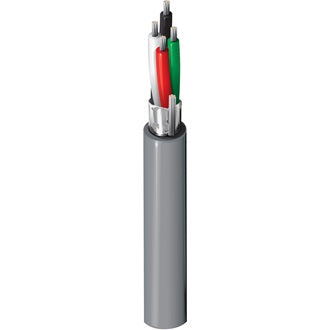

Belden 9534 0605000 | Computer EIA RS-232 Cable, #24-4C, SR-PVC, O/A Foil, PVC Jacket, CMG
Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Specifications
Specifications
Belden - 9534 0605000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Stranding | 7x32 |
| UL Temperature | 60°C (UL CMG);80°C (UL AWM 2464) |
| Stationary Min. | 2.2 in (56 mm) |
| Installation Min. | 2.2 in (56 mm) |
| Max. Pull Tension | 28 lbs (13 kg) |
| Bulk Cable Weight | 18 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 4 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Nec Cmg |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
