Brand: Tripp-Lite
|
SKU:
642812

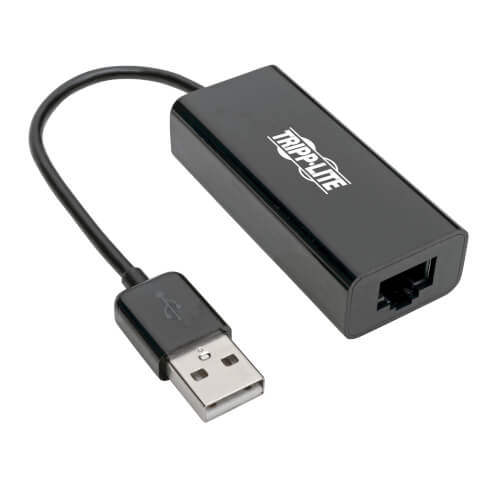

Tripp-Lite U236-000-R | USB 2.0 Ethernet NIC Adapter - 10/100 Mbps, RJ45, Black
Regular price
$28.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Connects your USB-enabled computer or laptop to a 10/100 Mbps Ethernet network without installing an internal Ethernet card.
Features
- Connects Your USB Device to a Wired Ethernet Network without an Internet Card Installed
- This USB to Ethernet adapter allows you to instantly connect your computer, laptop, tablet or other USB-compatible device to a wired 10/100 Mbps Ethernet network, even if your device has no NIC (Network Interface Controller) installed. The adapter is a more convenient, less expensive way to go online than opening your device and installing an internal Ethernet card.
- Plug and Play with No Power Supply Needed
- This USB 2.0 Ethernet adapter offers access to an Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Just connect the built-in USB cable to your device’s USB port (which also powers the adapter), and wait for the installation process to finish (you may have to reboot your computer). Then, connect the RJ45 port to a LAN port using a Cat5e/6 network cable (such as Tripp Lite’s N201-Series Cat6 UTP patch cable, sold separately). The adapter works with Windows, Mac and Linux operating systems. It is backward compatible with USB 1.1 devices.
- Delivers Full Ethernet Performance
- The compact USB to Ethernet adapter supports full 10/100 Mbps network speeds and USB 2.0 speeds, allowing you to transfer data quickly and stream audio and video. It’s compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. It supports full duplex with IEEE 802.3x flow control and half duplex with backpressure flow control. LEDs indicate successful data transfers.
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|---|
| Driver Required | Yes |
| Recommended Category Cable | Cat5/5e/6 Cables |
| Auto MDIX Support | Yes |
| Full Duplex Support | Yes |
| Suspend Mode Support | Yes |
| Remote Wakeup Support | Yes |
Specifications
Specifications
Highlights
- Connects you to a wired Ethernet network when Wi-Fi is weak or unavailable
- Supports USB 2.0 speeds to ensure efficient data transfers
- Sustains full 10/100 Mbps network speeds for fast Ethernet browsing
- Works with most laptops and PCs running Windows, Mac or Linux
- USB 2.0 Ethernet adapter powered via USB, so no external power supply is required
Applications
- Upload data from your notebook or download data from the Ethernet at true 10/100 Mbps speeds
- Replace a malfunctioning RJ45 port or Ethernet card on your laptop or PC
Overview
| UPC Code | 37332163127.0 |
|---|---|
| Technology | Cat5/5e; Cat6; USB 2.0 (High Speed); USB |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 7.5 |
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
| Material of Construction | ABS, PVC |
| Shipping Dimensions (hwd / in.) | 0.50 x 5.20 x 5.30 |
| Shipping Weight (lbs.) | 0.10 |
| Unit Dimensions (hwd / in.) | 0.6 x 2.6 x 0.9 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.05 |
Environmental
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
|---|---|
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
| Relative Humidity | 10% to 90 % RH, Non-Condensing |
| BTUs | 2.6 BTU/Hr |
| Power Consumption (Watts) | 0.75 |
Communications
| Network Speed | 10/100 Mbps |
|---|---|
| IEEE Standards Supported | 802.3; 802.3ab; 802.3az; 802.3u; 802.3x |
Connections
| Side A - Connector 1 | USB A (MALE) |
|---|---|
| Side B - Connector 1 | RJ45 (FEMALE) |
| Connector Plating | Nickel |
Standards & Compliance
| Certifications | Tested to CE; FCC; RoHS; REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Quick Start Guide for USB Ethernet Adapters
- Quick Start Guide for USB 2.0 10/100 Mbps Ethernet Adapter; USB 2.0 Gigabit Ethernet Adapter & USB 3.0 Gigabit Ethernet Adapter (Multi-language)
- Display Solutions Brochure 230V (English) Global
- Laptop/Tablet Accessories Brochure (English)
- EC Declaration
- Custom Products from Tripp Lite Are One Call Away
- Download images for this product
