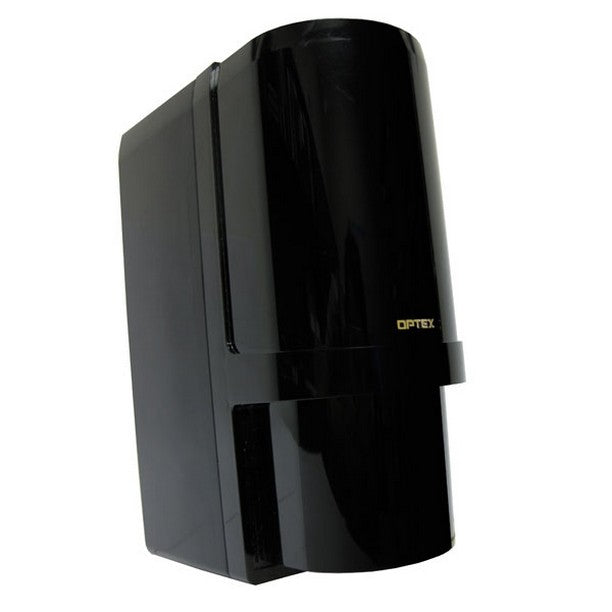

Optex AX-100TFRi | Wireless 100' Photoelectric Detector Ccomplete With Inovonics Transmitter and Batteries
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Optex AX-100TFRi | Wireless 100' Photoelectric Detector Ccomple...
Description
Description
The AX-100TFRi is a wireless 100' Photoelectric Detector from Optex which comes complete with batteries and an Inovonics transmitter that offers an alternative to the more common hardwired systems available. The AX-100TFRi wireless detector comes with an IP55 rating, a low battery output w/ LED, a DQ circuit, plus a long battery life of approximately five years, and an infrared beam interruption detection method. The AX-100TFRi detector also features a 265m max arrival distance, a 100ft range, a wide operating temperature, plus a form C alarm output. This quality Photoelectric Detector is wireless ready having a multi functioning back box that has a compatibility with many different manufacturers?wireless operations, and comes complete with an effortless installation process.
The iSeries AX-100TFRi is a 100ft. battery-powered photobeam detector that includes Inovonics EN1941 transmitters built in, making it a ready-to-install wireless solution for perimeter protection. Because no trenching or wiring is involved in the installation process, a substantial reduction in labor costs and install time can be expected. The AX-100TFRi also includes four lithium D cell batteries with a lifespan of up to five years. In addition, the AX-100TFRi is compatible with the AX-TW Series line of beam enclosures for a clean, concealed, wireless mounting option.
Optex - AX-100TFRi - Features
- Significant Cost Saving Alternative to hardwired Systems
- Includes Batteries and Inovonics EN1941 Transmitter
- Long Battery Life (Approximately 3-5 years)
- IP55 Rated
- 100ft. (AX-100TFR) and 200ft. (AX-100TFR) Models
- Significant cost saving alternative to traditional hardwired systems
- Long battery life (Aprox. five years for the 100TFR and three years for the 200TFR)
- Low battery output and LED (Separate wireless transmitter is required to monitor)
- Works with most manufacturers wireless system
- D.Q. circuit (environmental disqualification)
- IP 55 rated
Specifications
Specifications
Optex - AX-100TFRi - Specifications
| Manufacturer | Optex Inc |
|---|---|
| Condition | New |
| Model | AX-100TFRi |
| Range | 30m ( 100ft ) |
| Maximum arrival distance | 265m (870ft) |
| Detection method | Infrared beam interruption detection |
| Beam frequency | selection 4 channel |
| Interruption period | Variable between 50, 100, 250, 500 msec (4 steps) |
| Power Source | 3.6 V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (not included) Transmitter: 2 units Receiver: 2 units |
| Current draw | 620 µA T: 300 µA + R: 320 µA (at 25°C, 3.6 VDC) |
| Alarm output Form C-Solid State Switch | 3.6 VDC, 0.01 A |
| Alarm period | 2 sec (±1) nominal |
| D.Q. output Form A/B-Solid State Switch | 3.6 VDC, 0.01 A |
| Low battery output Form A/B-Solid State Switch | 3.6 VDC, 0.01 A (Transmitter & Receiver) |
| Operating temperature | -20°C – +60°C (-4°F – +140°F) |
| Environmental humidity | 95% (Max.) |
| Alignment angle | ±90° Horizontal, ±5° Vertical |
| Mounting | Indoor/Outdoor, Wall/Pole/Tower mounting |
| International protection | IP55 |
