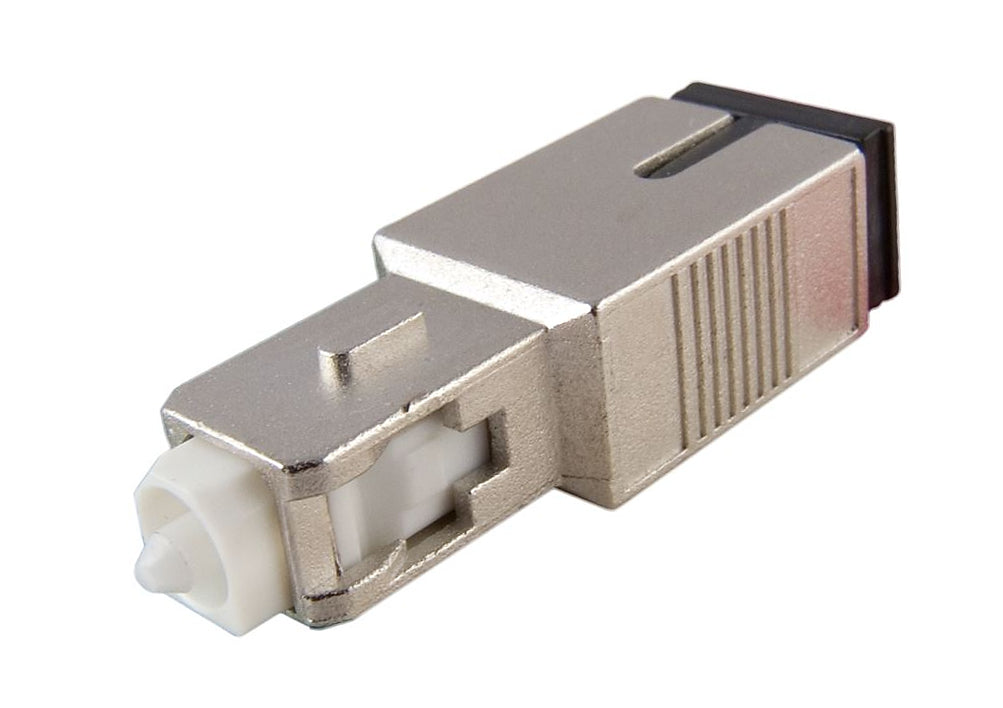

Commscope FOA-INSC05 | Fiber Optic Power Reducing Build Out Attenuator, singlemode SC/UPC, 5dB
Regular price
$39.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FOA-INSC05 | Fiber Optic Power Reducing Build Out Attenua...
Regular price
$39.16
Unit price
Description
Description
Commscope FOA-INSC05 | Fiber Optic Power Reducing Build Out Attenuator, singlemode SC/UPC, 5dB
Features and Benefits
- Designed to reduce or balance the power in passive optical networks
- Insertable between the connector and the adapter and therefore suited for distribution frames, cabinets and boxes
- High system flexibility because of wave-length independency and polarization insensitivity
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Product Type | Fiber attenuator |
| Product Series | FOA |
General Specifications
| Interface | SC |
|---|---|
| Interface Feature | Standard |
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.652.D |
| Attenuation, nominal | 5 dB |
| Operating Wavelength | 1430 – 1625 nm |
| Optical Components Standard | GR-910 |
| Optical Power, maximum | 250 mW |
| Return Loss, minimum | 55 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
|---|---|
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
