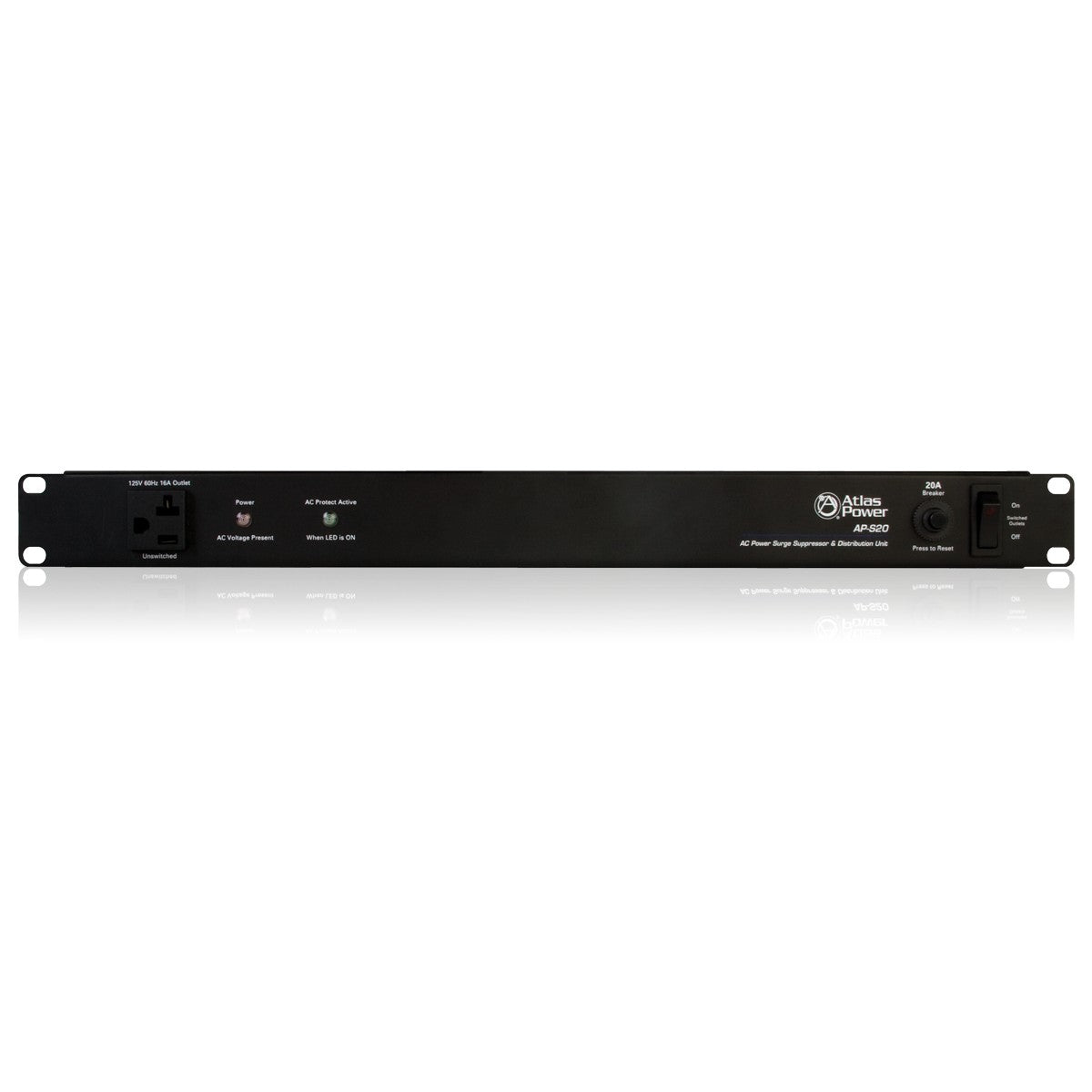

Atlas Sound AP-S20 | 20A Power Conditioner and Distribution Unit
Description
Description
The AP-S20 features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S20's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.
Atlas Sound - AP-S20 - Features
- 9 Total Outlets
- 1 Front Panel Outlet, Unswitched
- Radio Frequency and Electromagnetic Interference Filtering
- Spike Suppression Up to 6000V
- 7 Rear Panel Switched Outlets
- Circuit Breaker Protection 20A
- 1 Rear Panel Unswitched Outlet
Specifications
Specifications
Atlas Sound - AP-S20 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Video Display Equipment
- Other Video Display Equipment
- AC Power Distribution
- Power Distribution / Conditioners
Atlas Sound - AP-S20 - Related Products
- AP-S15A - 15A Power Conditioner and Distribution Unit with IEC Power Cord
- AP-S15A - 20A AC Power Distribution & AC Suppressor with Remote Activation
Atlas Sound - AP-S20 - Specifications
| Current Rating | 20 Amps |
|---|---|
| Certified to Safety Listing | Listed to UL-60950 |
| Operating Voltage | 102-132VAC |
| Minimum Spike Clamping Voltage | 460 VRMS @ 3000A |
| Maximum Spike Clamping Voltage | 6000V |
| AC Mains Power Cord | 9' (3m) |
| Height | 1.75" (44.5mm) |
| Width | 19" (482.6mm) |
| Depth | 3.75" (95.5mm) |
| Weight | 5 lbs. (2.27 kg) |
| UNSPSC Code | 52161600 |
