Brand: Corning
|
SKU:
372-COROS2-RIBA-864

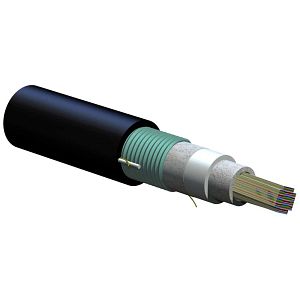

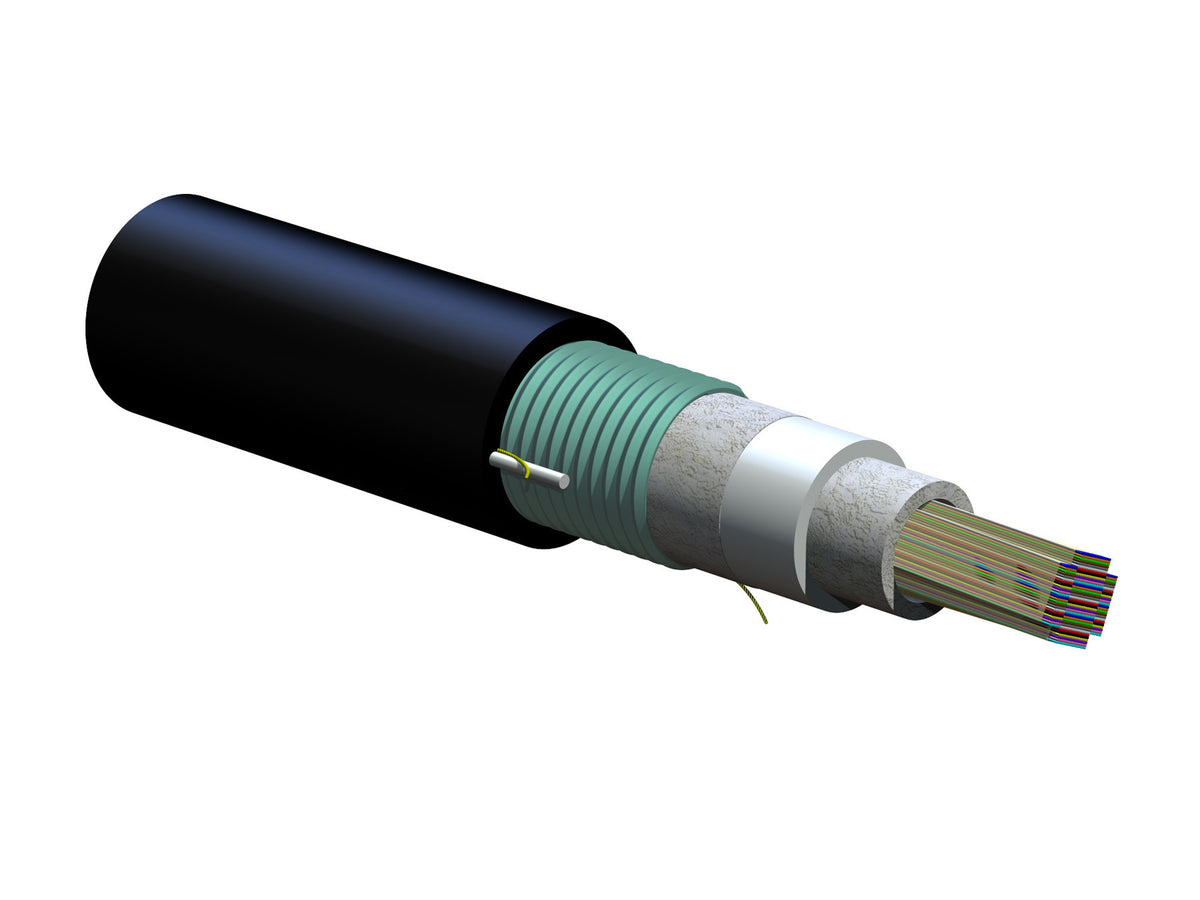

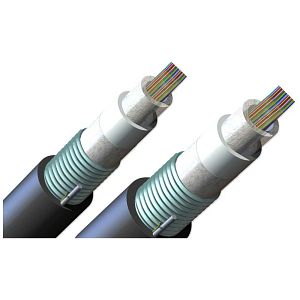

Corning 864EV5-14100D53 | SST-UltraRibbon Single-Tube, Gel-Free, Armored Cable
Regular price
$15.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 864EV5-14100D53 | SST-UltraRibbon Single-Tube, Gel-Free, Ar...
Regular price
$15.99
Unit price
Brand: Corning
|
SKU:
372-COROS2-RIBA-864
Regular price
$15.99
Unit price
Shipping calculated at checkout.
Description
Description
Corning 864EV5-14100D53 | SST-UltraRibbon Single-Tube, Gel-Free, Armored Cable 864 F, Single-mode (OS2)
Standards Approvals and Listings: RDUP PE-90 Listed Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20 Common Installations: Outdoor lashed aerial, duct and direct-buried; indoor when installed according to National Electrical Code (NEC) Article 770
Corning - 864EV5-14100D53 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Innovative waterblocking technology
- Provides ribbon to cable coupling
- Up to 432 fibers in a compact design
- Easily fits in 1.25-in diameter inner duct
- Each 12-fiber ribbon individually numbered
- Easy identification
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Innovative waterblocking technology
- Provides ribbon to cable coupling
- Up to 432 fibers in a compact design
- Easily fits in 1.25-in diameter inner duct
- Each 12-fiber ribbon individually numbered
- Easy identification
Specifications
Specifications
Corning - 864EV5-14100D53 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 864EV5-14100D53 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 864EV5-14100D53 |
| Environment | Outdoor |
| Cable Type | Ribbon |
| Product Type | Armored |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Direct Buried, Duct |
| Fiber Count | 864 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

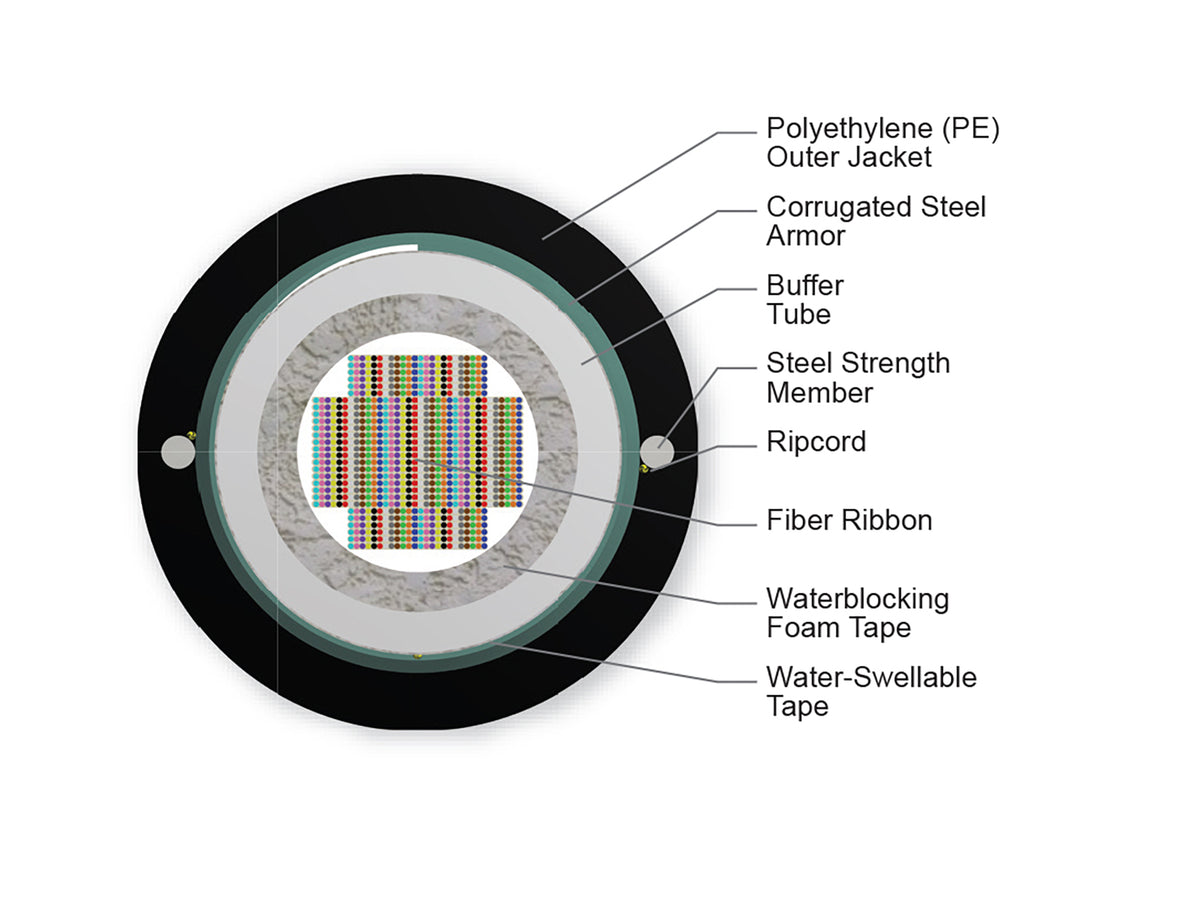

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 864 |
| Buffer Tube Diameter | 18 mm (0.71 in) |
| Number of Ripcords | 3 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Tensile Strength Elements and/or Armoring - Layer 2 | Steel strength members |
| Tape | Waterblocking foam tape |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Ribbons per Tube | 12 and 16 |
| Fibers per Ribbon | 36 and 24 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 351 mm (13.82 in) |
| Min. Bend Radius Operation | 351 mm (13.82 in) |
| Nominal Outer Diameter | 24.4 mm (0.96 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 0 |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 493 kg/km (331.28 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| Brand | SST-UltraRibbon |
| Standard | RDUP PE-90 Listed, ANSI/ICEA S-87-640, Telcordia GR-20 |
| Application | Aerial, Duct, Direct Buried |
| Armor | Steel |
| Insulation Material | Polyethylene |
| Temp. Rating | -40 ? to 70 ? |
