HellermannTyton 211-60039 | P-Clamp, 0.39" Wide, 0.26" Max Bundle Dia, 0.17" Mounting Hole Dia, PA66, Natural, 1000/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 211-60039 | P-Clamp, 0.39" Wide, 0.26" Ma...
Description
Description

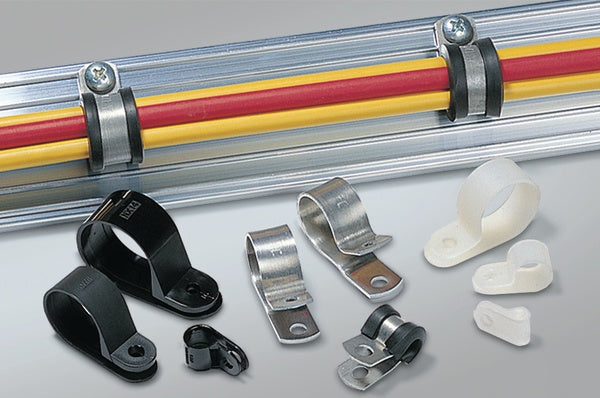

HellermannTyton P-Clamps easily guide and locate wires and cables. The clamps are designed with a radius edges to prevent chafing and cutting into insulation. Available sizes up to 1" bundle diameters.
HellermannTyton P-Clamps easily guide and locate wires and cables. The clamps are designed with a radius edges to prevent chafing and cutting into insulation. Available sizes up to 1" bundle diameters.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 211-60039 - Features
- P-Clamps easily guide and locate wire and cables up to 1" in diameter.
- Designed with a radius edge to prevent chafing and cutting into insulation.
- Made with UV-stable inks and materials for durability and weather resistance.
- Reflective properties to meet applicable NEC code requirements for reflective identification.
- Supplied with an aggressive adhesive to ensure long life.
- Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
Specifications
Specifications
HellermannTyton - 211-60039 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clamps
- P-Clamps
HellermannTyton - 211-60039 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Natural |
| Mounting Hole/Thread Dia | 0.26 |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 211-60039 - Base Data
| Article Number | 211-60039 |
|---|---|
| Type | H3P |
| Color | Natural (NA) |
| Quantity Per | pcs. |
| Short Description | P-Clamp, 0.39" Wide, 0.26'' Max Bundle Dia, 0.17'' Mounting Hole Dia, PA66, Natural, 1000/pkg |
| Global Part Name | H3P-PA66-NA |

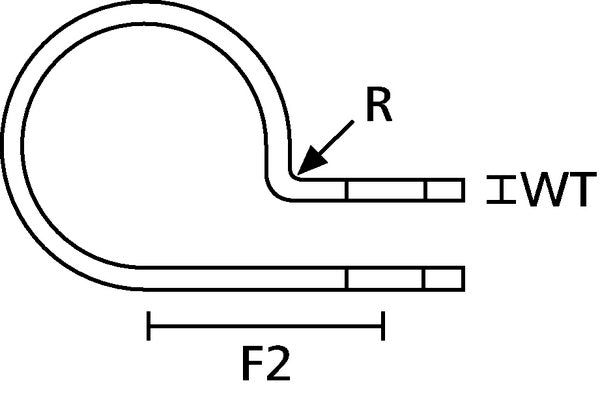

HellermannTyton - 211-60039 - Product Dimensions
| Fixation Method | screw-hole |
|---|---|
| Variant | Closed |
| Width W (Imperial) | 0.39 |
| Width W (Metric) | 10 |
| Bundle Diameter Max (Imperial) | 0.26 |
| Bundle Diameter Max (Metric) | 6.5 |
| Nominal Diameter (Imperial) | 0.25 |
| Nominal Diameter (Metric) | 6.5 |
| Wall Thickness WT (Imperial) | 0.039 |
| Wall Thickness WT (Metric) | 1 |
| Mounting Hole Diameter D (Imperial) | 0.17 |
| Mounting Hole Diameter D (Metric) | 4.2 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.17 |
| Mounting Hole Diameter D Max (Imperial) | 0.17 |
| Mounting Hole Diameter D Max (Metric) | 4.2 |
| Mounting Hole Centers (Imperial) | 0.39 |
HellermannTyton - 211-60039 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 211-60039 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | EN [45545-2] |
